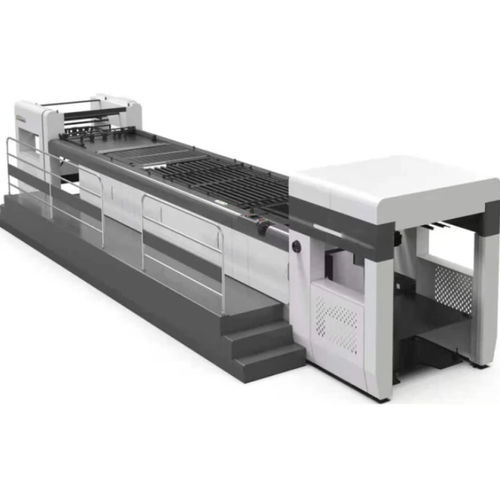

Industrial conveyor system VDG

transportfor packagingfor production lines

This machine could be widely used on sheet by sheet in fields of medical, food packaging, lottery, ticket, bill, note and cards with high efficiency and humanistic operation. Function Description: 1.Correct the paper feeding error with a pull gauge ± 0.3mm. 2.The whole belt of the spray printing part is fully adsorbed. 3.The whole belt of LED part is fully adsorbed. Paper feeding process: Pre paper Feeder paper feeding Double sheet control Guider correction Adsorption belt Automatic paper receiving Main structure: 1.Main body: the equipment frame adopts high-strength and low stress steel wallboard with a thickness of 20mm to enhance stability. The transmission part is provided with protective cover 2.Main control: the whole machine is controlled by Taiwan Delta PLC. There is a touch screen to set parameters and monitor the working state. There are operable buttons in the front and back of the equipment. 3.Drive: high performance reduction motor combined with frequency converter is adopted to improve operation stability. 4.Line arrangement: all lines of the machine are arranged in a closed manner to reduce the probability of failure caused by human factors
