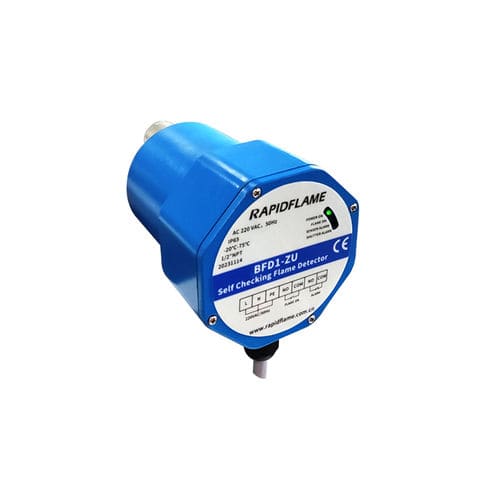

UV flame detector BFD1-ZU

analog

Self-checking UV Flame Detector for Combustion System Product Feature Integrated integrated design, no additional amplifier and programmer. Self-test design, suitable for 24-hour continuous operating condition. Continuous self-test and timing self-test modes are optional. Strong versatility, the output signal is switching quantity, ion current signal, suitable for PLC and program controller. Analog volume 1-5V flame intensity output. Sensitivity is fine-tuned with a gain regulator. Sensitive detection, the spray torch measured can reach more than 3 meters. The isolation lens with 015 Kpa effectively prevents water, heat, dust and corrosion inside the furnace. Signal isolation design, with a signal processing circuit, strong anti-interference. Effectively prevent misdetection. Built-in sensor, self-inspection device, amplifier, photoelectric conversion, MCU controller. With a fault indicator light, indicating the fault type. The internal UV lamp tube can be replaced separately. IP65 protection grade. CE attestation. Application UV flame detector check output is the relay switch signal or ion current signal, which can be used with PLC and DCS, and is also suitable for the vast number of program controllers on the market. The product meets the requirements of European standard EN298:2012-11 for burner management control unit.
