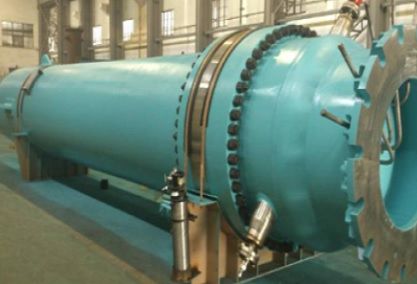

Shell and tube heat exchanger AP1000

liquid/liquidfuel

Nuclear island Normal Residual Heat Removal Heat Exchanger Normal residual heat removal heat exchanger is one of the most important equipment in nuclear power plant. Normal residual heat removal heat exchanger is one of the main equipment of RNS. The main function of normal residual heat removal heat exchanger is to remove the decay heat from the reactor core and reduce the temperature of RCS (Reactor Cooling System) during the second stage of the cold shut down of the power plant. Normal residual heat removal heat exchanger is running continuously during refueling to remove the heat from reactor core and RCS. In additional, there are functions such as refueling tank cooling down inside the containment, closed loop cooling after accident and spent fuel pool cooling. Products are used in Sanmen 1000MW, Haiyang 1000MW, Lufeng 1000MW, CNPEC demonstration reactor 1000MW nuclear power plant. AP1000 Nuclear power technology is one of the most advanced nuclear power technologies in the world. The AP1000 normal residual heat removal heat exchanger manufactured by our company is the first unit of such equipment in the world. During manufacturing, a large amount of equipment parameters have been solidified, and the manufacturing of the equipment is in the leading position in the industry.
