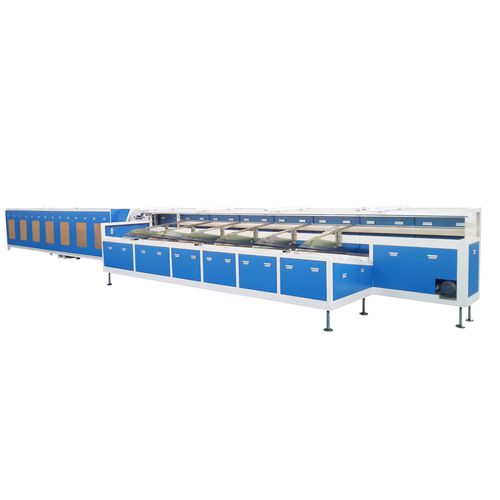

Pipe packaging line FCL-800

automatic

This pipe bundling machine is an automatic pipe packing line, including pipe counting, feeding, storage, aligning, bundling, strapping, conveying, etc. It is a set of efficient, convenient and safe wrapping machinery for pipe bundle packaging. It can greatly improve the work efficiency with small labor cost. IV. PROCESS FLOW: 1, Pipe in feeding from extruder 2, Counting the number of the pipes by program 3, Storage the pipe 4, Accumulate and array the pipes 5, Aligning the pipe bundle 6, Bundling & strapping the pipe bundle by stretch film 7, Strapped pipe bundle shift to bagging station 8, Automatic baggine and package out-feeding Automatic pipe bundling machine JL-CX6000 1. Storage & Feeding system It is for pipe storage to ensure uninterrupted working. The pipe lifter is for lifting the orderly pipe from basket and counting for bundling preparation. Features: Controlled by PLC program. Both online and offline bundling Pipe accumulation and storage station. Pipe lifter for lifting the pipes. Pipe counting device. Defective recycle storage device. Sensor for positioning and detecting. Precise pipe counting system. Buffer zone for more pipe feeding. Pipe lifting one by one automatically. Three position strapping 2. Film strapping machine Automatic pipes accumulating, aligning, stringing, bundling, strapping system. Features: One strapping head for three place strapping. PLC&HMI program control for automatic operation. Pipe aligning device for keeping the orderly ends. Pieces of pipe per bundle are changeable. Ring speed and roller speed are adjustable by convertor. Both manual and automatic working mode can be chose.
