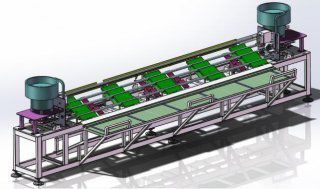

Automatic packing machine

for pipe

A.Equipment name: automatic pipe capping machine B.Specification: for pipe diameter 20-32; other specification needs customization C.Scope: pipe production line D.Environment: 1. Indoor 2. Temperature: -20/45℃ 3. Altitude: 0-3000m 4. Power supply: AC 220V(+10%,-10%) 50Hz TNS ground 5. Electricity consumption: less than 300W 6. Air source: 0.5mpa 7. Gas consumption: less than 1.0 m3 / h 8. Pipe material: national standard size, length 3m or 4m, length deviation plus or minus 10mm 9. Tube cap: the flying edge of injection molding is less than 4mm, and the roundness is not required E.Device description 1. Size: 5500mm*1200mm*1100mm(length * width * height) 2. Color: light yellow, other colors can be customized 3. Control: HMI+PLC+ photoelectric sensor + solenoid valve + cylinder + vibration plate 4. Installation: turnkey project is provided F. Technical data 1. Cap speed: cap cycle is less than 2 seconds, limit cycle is 1.5 seconds (40 times per minute) 2. Block failure rate: less than 1 in 50,000 3. Failure detection: optional match (additional RMB 4000) 4. Automatic counting subcontracting: ok 5. Pipe diameter detection: optional (plus 30,000 yuan) 6. Vibration plate: according to the design of the pipe cap provided by the customer 7. Whether the tube cap is detected: photoelectric switch 8. Pipe testing: photoelectric switch 9. Air source treatment: automatic drainage, double pressure adjustment, and separate adjustment of cap strength 10. Communications: industrial Ethernet, with a speed of 10M
