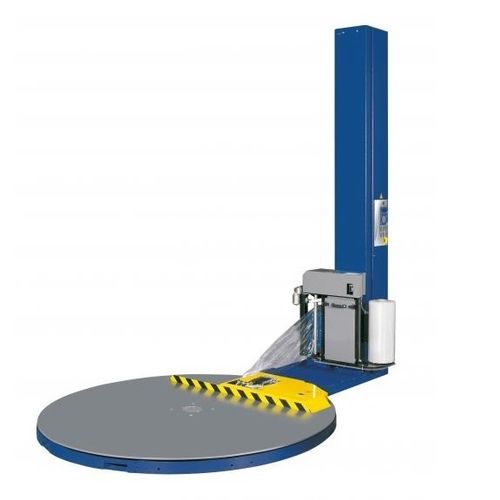

Turntable wrapping machine A400

semi-automaticpalletfor the food and beverage industry

Description Pallet stretch wrappers are used to wrap pallets around stretched film that equipted a autoatmic film cutting device. Films provide additional support during shipping and storage to prevent tip, spill or damage. In addition, the load on the package can be easily separated and identified. Pallet strtchpackaging machine is widely used in chemical, electronics, building materials, home appliances, paper, food, beverage and other industries. Program Controls Controller: PLC system Tension control: Pre-stretch controller Operator interface: Separate buttons/Display Wrap settings: Re-wrap function, overwrap and overlap adjustments Wrap counters: Independent top, middle and bottom Cycle counters: Total cycle counter and resettable Counter Emergency stop: Red mushroom head Electrical disconnect: Lockable Electrical enclosure: European approved Stretch Film (LLDPE): Thickness: 0.025mm , Width: 500mm Length : 500m-1500m, Weight: 15kg/Roll Film capacity: 500mm width x 76mm dia. Stretch type: Pre-stretch Pre-stretch level: 250% (optional 100% to 300%) Load height sensor: Photocell sensor Force -control: Variable Film threading: Fhope design, W film threading pattern. Turntable Bearing type: Ring gear Start & stop mode: Soft start & stop Diameter: 1500mm Maximum turning diameter: 2000mm Maximum load weight: 1800kg Turntable elevation: 80mm Turntable plate thickness: 10mm (Anti-deformation) Controller: PLC system Tension control: Pre-stretch controller Operator interface: Separate buttons/Display Wrap settings: Re-wrap function, overwrap and overlap adjustments Wrap counters: Independent top, middle and bottom
