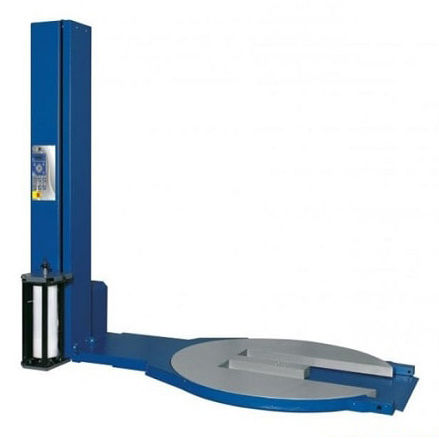

Turntable wrapping machine M-type

semi-automaticpalletstretch film

Description Pallet stretch wrapping machines are used in distribution centers, manufacturing companies, fulfillment operations,printing operations or companies that are moving or shipping products on pallets. Stretch wrappers are available in different styles and levels of automation. Even the simplest stretch wrap machine is animprovement over the inconsistent, unsafe, and labor intensive method of hand wrapping.If you want to know more details,please contact us. Program Controls Controller: PLC system Tension control: Pre-stretch controller Operator interface: Separate buttons/Display Wrap settings: Re-wrap function, overwrap and overlap adjustments Wrap counters: Independent top, middle and bottom Cycle counters: Total cycle counter and resettable Counter Emergency stop: Red mushroom head Electrical disconnect: Lockable Electrical enclosure: European approved Stretch Film (LLDPE): Thickness: 0.025mm , Width: 500mm Length : 500m-1500m, Weight: 15kg/Roll Film capacity: 500mm width x 76mm dia. Stretch type: pre-stretch series Pre-stretch level: 250% (optional 100% to 300%) Load height sensor: photocell sensor Force -control: variable Film threading: Fhope design, W film threading pattern. Turntable Bearing type: ring gear Start & stop mode: soft start & stop Diameter: 1500mm Maximum rotating diameter: 2000mm Maximum load weight: 1800kg Turntable height: 80mm Turntable plate thickness: 10mm Controller: PLC system Tension control: Pre-stretch controller Operator interface: Separate buttons/Display Wrap settings: Re-wrap function, overwrap and overlap adjustments Wrap counters: Independent top, middle and bottom
