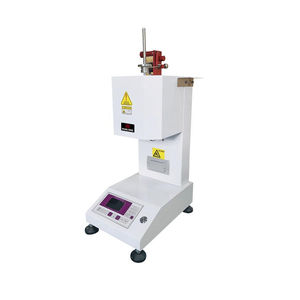

It is used to determine the MFR value of the melt flow rate through the standard die every 10 minutes when various plastics and gums pass through a certain temperature and load in a viscous flow state. It is suitble for melting high temperature polycarbonate, polysulfoxide, fluorine plastics, nylon and other engineering plastics. Also, it is appropriate for the polyformaldehyde, polystrene, polypropylene, ABS resin polyformaldehyde, polycarbonate resin and other low temperature plastic melting test. The machine is widely used in plastic production, plastic products, petrochemical and other industries as well as related universities, scientific research units and commodity inspection departments.
B. Test standards
·B-T3682-2018 Determination of melt flow rate and melt volume flow rate for thermoplastics
·ISO1133: 1997 Determination of melt mass flow rate MFR and melt volume flow rate MVR for thermoplastics
·ASTM D1238 Standard test method for determination of flow rate of thermoplastics melt by extruded plastimeters
C. Specifications
Measurement: MFR/MVR
Temperature range: 40℃ - 450℃
Display device: Touch screen controlled
Temperature fluctuation: ± 0.2℃
Cutting timing range: 1-999S adjustable
Mouth mold diameter: Φ2.095±0.005mm ( Mouth Radius : 1.05 mm + 0.005 )
Discharge hole length: 8.000± 0.025mm
Piston rod diameter: 9.474 ± 0.007mm
Piston rod length: 6.35 ± 0.13mm
Famar precision: ± 0.5%
Testing scope of MFR: 0.1-150g /10min
Testing scope of MVR: 150-5000cm³/10min
