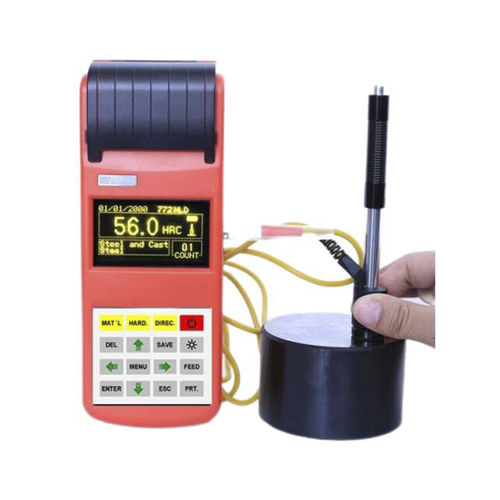

Leeb hardness tester HLP-1200portablefor bearingsfor molds
Add to favorites
Compare this product
Characteristics
- Type
- Leeb
- Mounting
- portable
- Product applications
- for bearings, for molds, assembly line, for materials testing machine, generator
- Other characteristics
- impact
Description
-Die cavity of molds
-Bearings and other parts
-Failure analysis of pressure vessel, steam generator and other equipment
-Heavy work piece
-The installed machinery and permanently assembled parts
-Testing surface of a small hollow space
-Material identification in the warehouse of metallic materials
-Rapid testing in large range and multi-measuring areas for large-scale work piece
-Measuring range：HLD（170～960）HLD
-Measuring direction：360°
-Accuracy:+/- 4 HLD
-Hardness Scale：HL、HB、HRB、HRC、HRA、HV、HS
-Display：OLED screen ,3 inch ,one of the biggest screen in China.
-Data memory： 600 groups max.（relative to impact times 32～1）
-Printing paper: width is （57.5±0.5）mm, diameter is 30mm
-Battery pack: 7.4V Li battery.
-Battery charger: 9V/500mA
-Continuous working period：about 200 hours（With backlight off, no printing）
-Communication interface：USB2.0
-Outline dimensions：225mm×85mm×35mm
