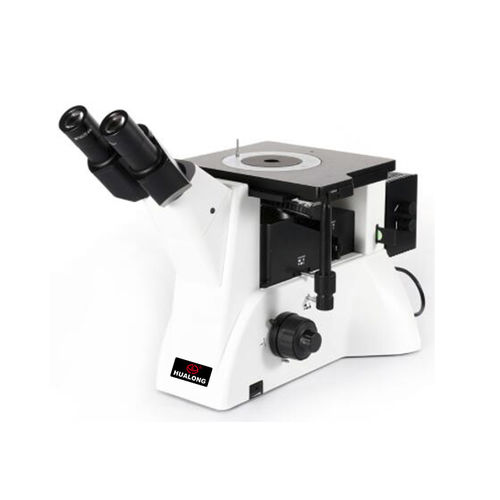

Metallographic microscope HL102-C

laboratoryinspectioneducational

1. Application HL102-C Trinocular Inverted Metallurgical Microscope is equipped excellent infinity optical system and modularization function design, you can easily upgrade the system to achieve polarization observation, dark field observation and other functions. Compact and stable high rigidity body,fully embodies the anti-vibration requirements of microscope operation. Ideal design for ergonomic requirements, make the operation more convenient and comfortable, and space wider. Suitable for microscopic observation of the microstructure and surface morphology, it is the ideal instrument for metal, mineralogy, precision engineering research. 2. Specification 2.1 Eyepiece: Wide field WF10X (visual field number Φ22mm) 2.2 Objective lens: PL L5X/0.12 BD Working distance: 9.70 mm PL L10X/0.25 BD Working distance: 9.30 mm PL L20X/0.40 BD Working distance: 7.23mm PL L100X/0.70 BD Working distance: 2.50 mm 2.3 Eyepiece tube: 45°tilt, IPD adjustment range 53~75mm 2.4 Focusing mechanism: Coaxial coarse focus,With locking device,Micro-grid value:2μm 2.5 Converters: Five holes (Backward ball bearing inner locating) 2.6 Stage: Mechanical moving stage, Dimensions:242mmX200mm, Moving Range:30mmX30mm Circular rotating stage plate size: The largest diameter Ф130mm, minimum clear aperture less than Ф12mm 2.7 Illuminating system: 6V30W Halogen lamp, adjustable brightness Built-field diaphragm, aperture diaphragm and pull plate polarizer with frosted glass; yellow, green and blue color filters basic configuration 2.8 Adaptor: 0.5X Computer Adaptor 2.9 Digital camera: 3.0 MP Digital Camera
