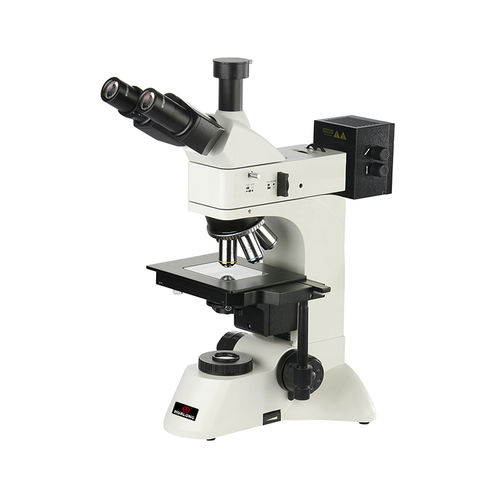

Metallographic microscope HL301-C

laboratoryinspectioneducational

1. Application HL301-C trinocular transflective upright metallographic microscope is suitable for microscopic observation of opaque or transparent objects. Adopting the excellent design concept of infinity optical system and module function, it can provide excellent optical performance and product system upgrade, realize the functions of simultaneous transmission and reflection, independent illumination, polarized observation and other functions. The product has the characteristics of beautiful appearance, convenient operation, clear image, etc. It is an ideal instrument for research in biology, metallurgy, mineralogy, precision engineering, electronics, etc. 2. Specification 2.1 Optical system: Infinite chromatic aberration correction optical system 2.2 Observation tube: Trinocular, tilted 30˚, (built-in polarizer, switchable) 2.3 Eyepieces: Wide field WF10X / 22mm 2.4 Standard objective lens (Infinity plan achromatic objectives): PL L5X / 0.12 WD26.1 mm PL L10X / 0.25 WD20.2mm PL L40X / 0.60 WD3.98 mm (spring) PL L 60X / 0.7 WD3.18 mm 2.5 Converter: Five holes (inward ball positioning) 2.6 Focusing mechanism: Coarse and fine focus coaxial adjustment, fine motion grid value: 2μm, coarse and fine tension adjustment, with locking and limit device 2.7 Stage:Double-layer mechanical movable stage, size: 210mmX140mm, moving range: 63 * 50mm
