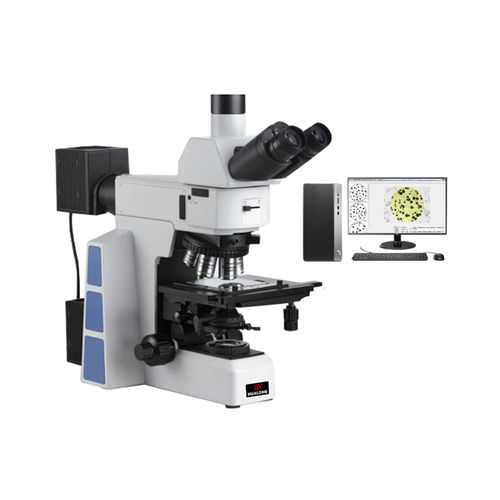

Metallographic microscope HL501MW

laboratoryinspectioneducational

1. Application The HL501MW research-grade metallographic microscope is a trinocular upright metallographic microscope, which integrates a number of firsts. From appearance to performance, it closely follows the international leading design trend, and is committed to expanding a new pattern in the industrial field. It can provide various observation functions such as reflection bright field, reflection dark field, transmission bright field, transmission and reflection polarized light, reflection differential interference and so on. 2.Specification 2.1 Lighting system: Infinity Chromatic Aberration Correction Optical System 2.2 Objective tube: 30° tilt, erect image, infinity hinged three-way observation tube, interpupillary distance adjustment: 50mm~76mm, two-speed splitting ratio binocular: trinocular = 100:0 or 0:100 2.3 Eyepiece: High eye point wide field plan eyepieces PL10X/25mm, adjustable diopter 2.4 Bright and dark field half complex Achromatic Objectives: -LMPLFL 5X /0.15 BD DIC WD13.5mm -LMPLFL10X/0.30 BD DIC WD9.0mm -LMPLFL20X/0.45 BD DIC WD2.5mm -LMPLFL50X/0.80 BD WD1.0mm 2.5 Convener:Light and dark field 6-hole converter with DIC slot 2.6 Station: Transflective dual-purpose frame, low-hand position coarse and fine coaxial focusing mechanism. The coarse adjustment stroke is 25mm, and the fine adjustment accuracy is 0.001mm. With adjustable elastic device to prevent sliding and random upper limit device. Built-in 100-240V wide voltage system, dual power output, digital dimming 2.7 Stage: Right-hand 4-inch mechanical stage, travel 105mmx102mm, with Y-axis locking mechanism, with transmission system light barrier, with glass stage plate
