Universal testing machine WAW-D | 600kN~3000kN|ASTM, ISO, EN, JIS
compressionbendingflexure

universal testing machine
universal testing machine
universal testing machine
universal testing machine
universal testing machine
universal testing machine
universal testing machine
universal testing machine
Add to favorites
Compare this product

Characteristics

Test type
universal, compression, bending, flexure, tensile, tension/compression, compression resistance, shearing, tensile strength
Operating mode
computer-controlled, automated, motorized
Test material
materials, for sheet metal, concrete, for building materials, for pipes, for materials
Sector
for laboratories
Technology
servo-hydraulic, electro-hydraulic
Other characteristics
4-column

Description

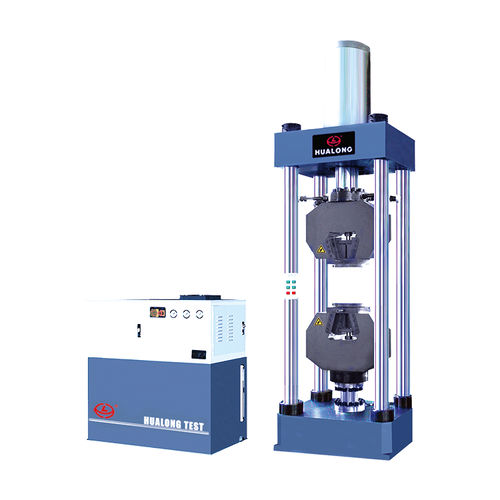

HUALONG WAW-D(single test space) Series Servo-hydraulic Universal Testing Machine features top-mounted oil cylinder which allows the compression and tensile test to be done in one space, offers better operation height as well as better stiffness than dual space model. According to EN, ISO, ASTM, JIS and other national and international testing standard. Features: Long test stroke provide capability to meet a variety of testing requirements of international standards without changing the crosshead adjustment; Rigid 4-column load frame providing superior axial and lateral stiffness and minimum maintenance, low reaction at specimen failure; Ultra-large test space accommodates a large variety of specimen dimensions, grips, fixtures, furnaces, and extensometer; Unchanged height of lower grip and accessible test level making it easy for operators to install specimens and test fixtures; Chrome plated columns for easy cleaning and longest life; Parameters: Load capacity: 600~3000kN; Accuracy class: 0.5; Measurement range: 1%~100%; Displacement resolution: 0.001mm; Stroke: 650~750mm (Customized available); Testing speed: 0.1~250mm/min; Testing space: 650~750mm (Customized available); Specimen sizes: Round specimen 6~80mm, Flat specimen 0-60mm width 90~110mm; Application: Metals-(wire, rod, tube, strip, plate, strip); Fasteners (tensile, proof, single and double shear); Construction materials (reinforcement bar, wire, mesh, folding, compression of concrete and components);
