- Horizontal balancing machine
- Shanghai Jianping Dynamic Balancing Machine

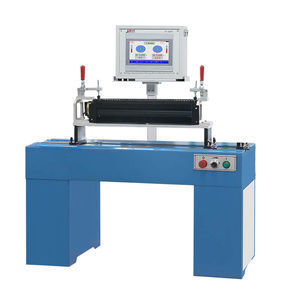

Horizontal balancing machine PHG-5dynamicmanualfor fans
Add to favorites
Compare this product
Characteristics
- Orientation
- horizontal
- Type
- dynamic
- Operation
- manual
- Applications
- for fans
- Other characteristics
- high-accuracy, modular, compact
- Rotational speed
1,470 rpm
(9,236 rad.min-1)- Weight on rotor
Min.: 0.5 kg
(1.1 lb)Max.: 5 kg
(11 lb)
Description
Cross Flow Fan Blade Balancing Machines
1.Specially designed brackets transmit mechanical force with low vibration damping
2.Durable and reliable sensor possesses good linearity
3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4.Belt-driving offers higher accuracy and easier operation
5.Advanced electrical measuring system and friendly man-machine interface
6.Cross flow fan balancer is applicable for all kinds of air-conditioner's fan dryer tangential blower etc
Technical data at a glance - PHG-5
Max Mass of Workpiece (kg) - 5
Max Diameter of Workpiece (mm) - 150
The distance between two bearing pedestals - Min 60-900
Length of workpiece(mm) - 900
Journal diameter on roller carriages - Φ5~12
Spindle speed(r/min) - 1470 stepless speed regulation
Motor power(kw) - 0.2DC
Min Achievable Residual Unbalance Amount (emar) - 0.5g· mm/kg
