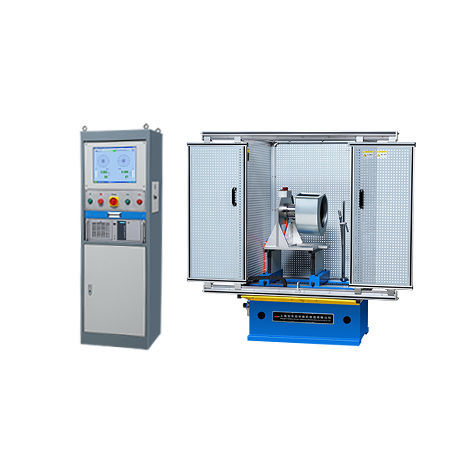

Vertical balancing machine PHZS-160dynamicpneumaticfor rotors
Add to favorites
Compare this product
Characteristics
- Orientation
- vertical
- Type
- dynamic
- Operation
- pneumatic
- Applications
- for rotors
- Other characteristics
- high-accuracy
Description
Application: It is suitable for the overall unbalance detection of fan rotors.
Features:
- Adopt hard-bearing overall bearing pedestals, high precision.
- Special pneumatic fixture is used for overall balancing.
- The equipment has protective functions and safety door locks.
- Left and right push-pull protective cover safety doors, safe and reliable operation.
Technical data at a glance:
PHZS-50 / PHZS-160
- Max Mass of Workpiece (kg): 50 / 160
- Max Diameter of Workpiece(mm): Φ550 / Φ800
- Distance Between Two Support Bearings(mm): 40-700 / 40-1070
- Power: AC220V, Single-Phase, 50/60HZ
- Min Achievable Residual Unbalance Amount (emar): 1g· mm/kg
