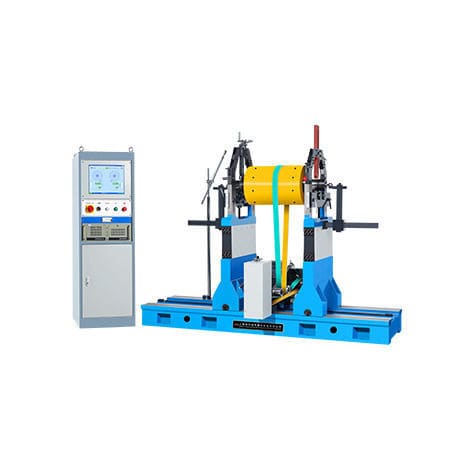

Horizontal balancing machine PHQ series

hard bearingmanualfor blowers

ApplicationUsed for the unbalance correction of rotating workpieces such as various large and medium-sized motor rotors, impellers, crankshafts, rollers and shafts etc.FeatureThis machine adopts Jianping’s electronic measurement system, with various measurement methods, dynamic and static balancing, bearing modes are up to 10 kinds, weight addition & removal, CW and CCW rotation can be flexibly customized. It adopts multiple calibration coefficient combinations, automatically adjusts system sensitivity, and shifts without jumps, software and hardware dual filtering, data compression, the measurement is more stable.Applicable to small workpiecesTechnical data at a glancePHQ-1.6/5PHQ-1.6A/5APHQ-G5PHA-5PHQ-16AMax Mass of Workpiece(kg)1.6/51.6/55516Max Diameter of Workpiece (mm)Φ300Φ300Φ300400Φ300Distance Between Two Support Bearings (mm)15~50015~50015~50015~50015~500Journal Diameter Scope of Workpiece (mm)Φ 3~40(120°)Φ 3~40Φ 3~40Φ 3~40Φ 3~40Diameter Scope of Driving Belt (mm)Φ20~85Φ15~150Φ20~85Φ15~150Φ15~150Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) ~14701)~14701)~14701)0~20001)~14701)Motor Power (kw)0.2DC0.2DC0.2DC0.2DC0.2DCMin Achievable Residual Unbalance Amount (emar)≤0.15g· mm/kg≤0.15g· mm/kg≤0.15g· mm/kg≤0.15g· mm/kg≤0.15g· mm/kgApplicable to medium workpiecesTechnical data at a glancePHQ-50PHQ-160HPHQ-160ZPHQ-C160HPHQ-300HPHQ-500HMax Mass of Workpiece(kg)50160160160300500Max Diameter of Workpiece (mm)Φ700Φ1000Φ300400Φ1220Φ1500Distance Between Two Support Bearings (mm)80~700130~1270130~1270130~1270130~1270130~1270Journal Diameter Scope of Workpiece (mm)Φ 15~755)Φ 15~753)Φ200-300Φ200Φ 15~753)Φ 15~753)Diameter Scope of Driving Belt (mm)Φ18~200Φmax400Φmax300Φmax400Φmax500Φmax600Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) 700,10501)~117675001)756,11761)~1176~1176Motor Power (kw)0.752)1.52)42)1.52)1.52)2.22)Length of Bed (mm)150015001500Min Achievable Residual Unbalance Amount (emar)≤0.15g· mm/kg≤0.15g· mm/kg≤0.15g· mm/kg≤0.15g· mm/kg≤0.15g· mm/kg≤0.15g· mm/kgApplicable to large workpiecesTechnical data at a glancePHQ-1000HPHQ-2000HPHQ-3000HPHQ-5000Max Mass of Workpiece(kg)1000200030005000Max Diameter of Workpiece (mm)Φ1600Φ1800Φ2100Φ2400Distance Between Two Support Bearings (mm)160~1780160~1780160~2280500~2200Journal Diameter Scope of Workpiece (mm)Φ25~1204)Φ25~1204)Φ25~1204)Φ40~380Diameter Scope of Driving Belt (mm)Φ40~700Φ40~800Φ40~900Φ50~1000Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) 795,19181)795,9861)795,13151)795,18531)Motor Power (kw)42)5.52)7.52)152)Length of Bed (mm)2000200025002500Min Achievable Residual Unbalance Amount (emar)≤0.15g· mm/kg≤0.15g· mm/kg≤0.15g· mm/kg≤0.25g· mm/kgApplicable to huge workpiecesTechnical data at a glancePHQ-10000HPHQ-15000HPHQ-20000HMax Mass of Workpiece(kg)100001500020000Max Diameter of Workpiece (mm)Φ2400Φ2800Φ2800Distance Between Two Support Bearings (mm)750~4600750~5600750~5600Journal Diameter Scope of Workpiece (mm)Φ 60~400Φ60~400Φ60~400Diameter Scope of Driving Belt (mm)Φ50~1000Φ50~1300Φ50~1300Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) 795,18531)795,18531)795,18531)Motor Power (kw)18.52)222)302)Length of Bed (mm)250025002500Min Achievable Residual Unbalance Amount (emar)≤0.5g· mm/kg≤0.5g· mm/kg≤0.5g· mm/kg1) Stepless speed regulation2) Frequency conversion3) Can add to 75-1804) Can add to 120-2405) Can add to 75-140Electronic measurement systemDynamic and static balancingUp to 10 bearing modesCustomizable CW and CCW rotationMultiple calibration coefficient combinationsAutomatic system sensitivity adjustmentSoftware and hardware dual filteringData compression for stable measurementApplicable for small, medium, large, and huge workpieces
