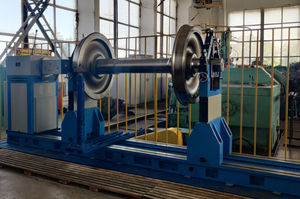

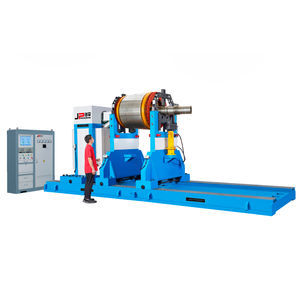

Horizontal balancing machine PHW-80000

dynamicfor large partsfor rotors

Application It is used for the unbalance correction of rotating workpieces such as large and medium-sized motor rotors, blowers, centrifugal impellers, drying cylinders, and rollers. Features - Professionally designed brackets, which can effectively transmit mechanical force, firm and reliable, with low vibration damping and good rigidity - High sensitivity sensor, good linearity, durable and reliable - Once calibration, permanent use, allowing extremely high initial unbalance - Special universal joint drive for balancing machine, stable power transmission, quick start and easy operation - It is suitable for the rotor whose outer circle cannot use belt drive device or requires large transmission power - Advanced electronic measurement system, friendly HMI, complete functions Applicable to Huge workpieces Technical data at a glance PHW-50000 PHW-80000 PHW-100000 Mass Scope of Workpiece(kg) 50000 80000 100000 Max Diameter of Workpiece(mm) Φ3600 Φ4000 Φ4200 Distance Between Two Support Bearings(mm) Min 600 Min 600 Min 600 Journal Diameter Scope of Workpiece(mm) Φ80~560 Φ80~560 Φ100~650 Max Distance between Driving Flange and Right Bearing Support (mm) 7000 7500 9500 Rotational Speed of the Main Axis(r/min) 138,235,348,505, 729,955 138,235,348,505, 729,955 124,187,255,373,473,627, 853,1588 Motor Power (kw) 110 160 200 Torque of Universal Joint Shaft(N·m) 10000 15000 18000 Length of Bed (mm) 9000 10000 12000 Min Achievable Residual Unbalance Amount(emar) ≤1g· mm/kg 1) Frequency conversion 2) Can add to 75-180 3) Can add to 120~240 4) Stepless speed regulation Application: Unbalance correction for large/medium rotors, blowers, impellers, cylinders, rollers Brackets: High rigidity, low vibration damping Sensor: High sensitivity, good linearity Calibration: One-time, permanent Drive: Universal joint, stable, high power Measurement: Advanced electronic system, user-friendly HMI Workpiece mass: up to 100,000 kg Max diameter: up to 4200 mm Motor power: up to 200 kW Torque: up to 18,000 N·m Bed length: up to 12,000 mm Min residual unbalance: ≤1g·mm/kg
