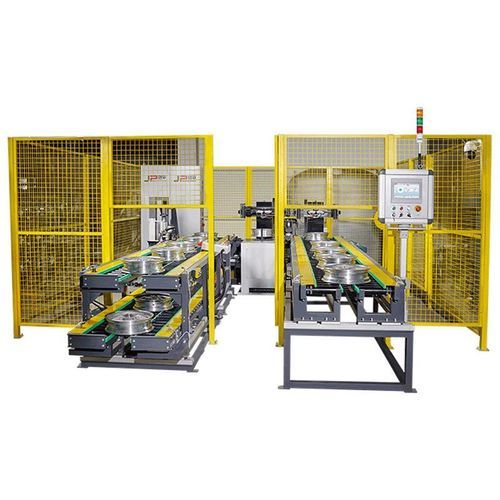

Horizontal balancing machine PHLD-35

dynamicfor wheel hubsautomatic

Application
Suitable for automatic dynamic unbalance detection and inline sorting of wheel hubs on production lines. Detects both unbalance amount and angular position to support balancing and quality control processes.

Features

• Integrated measurement-control system combining data acquisition, processing and control functions.
• Automatic measurement and precise angular positioning for fast inspection cycles.
• Front and rear stations each equipped with a measurement control unit and industrial PLC for synchronized operation.
• Capability to measure unbalance magnitude and angular position for accurate correction.
• Flexible design to accommodate multiple hub variants and enable quick changeovers.
• Operator-friendly interface with marking option for heavy-point or light-point identification.
• Built-in fault diagnosis and alarm functions to minimize downtime.

Technical specifications

• Purpose: Automatic dynamic unbalance detection and sorting of wheel hubs on production lines.
• Measured outputs: Unbalance amount (mass or force equivalent) and unbalance angular position.
• Control: Integrated measurement, control and calculation system for automated operation.
• Control units: Measurement control unit combined with industrial PLC for front and rear stations.
• Operation: Automatic measurement and positioning, quick changeover between variants, ergonomic user operation.
• Additional functions: Heavy/light point marking, fault diagnosis and alarm.
