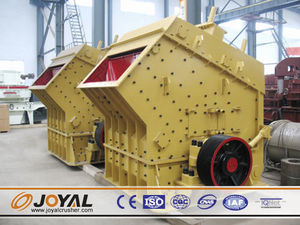

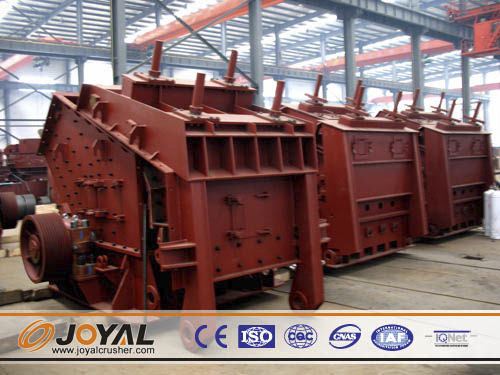

Impact crusher PF-1315

stationarysand production

The JOYAL Impact Crusher PF-1315 is used for primary, secondary and fine crushing of all kinds of stones and rocks with compressive strength less than 350 MPa such as granite, marble, and limestone. The Impact Crusher PF-1315 is widely used for sand and rock production in the industry of roads, railways, reservoir, electricity power, building materials and so on. Features 1. Cubic-shaped end products; 2. Adjustable end products sizes, simple crushing process; 3. The board hammer is made of high chrome and, abrasion-resistant, and with powerful impacting force; 4. Non-key connected, easy to maintain, cost-saving; 5. Sound construction and high efficiency. Working Principle The materials are crushed via impact energy produced in the impact crusher. When the materials enter the zone of the board hammer, they are flung into the impact equipments via the high-speed impact of the board hammer. These materials will be re-crushed after rebounding into the scale board. The large materials are crushed into small pieces until it becomes the specified granularities. The end products come out from the base of the impact crusher. Model: PF-1315 Rotor Size(mm): ø1320×1500 Feed Opening Size(mm): 860×1520 Max. Feeding Size(mm): 350 Capacity(t/h): 120-250 Motor Power(kw): 180-260 Weight(t): 24.8 Overall Dimension(mm): 2860×2800×3050
