process indicator / digital / panel-mount
LG8

Add to MyDirectIndustry favorites

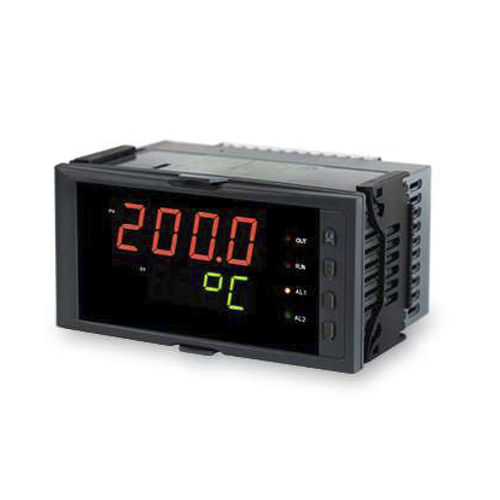

process indicator / digital / panel-mount process indicator / digital / panel-mount - LG8
{{requestButtons}}

Characteristics

  • Measured value:

    process

  • Display:

    digital

  • Type:

    panel-mount

Description

Advantage
• Multiple signal input.
• Upper and lower limit alarm function, LED alarm display.
• Multiple current and voltage signal output.
• Permanent preservation of parameters setting even no power.

Features
• Temperature drift: ≤0.01%FS/℃ (typical value: about 50ppm/℃ )
• Single-channel sampling period: 500ms
• Compression strength: input/output/power/communication 1000W.AC/min)
• Insulating strength: input/output/power/communication≥100MΩ
• EMC: IEC61000-4-4(EFT), ±4KV/5KHZ; IEC61000-4-5 (Surge), mode 4KV, differential mode 2KV
• Setting method: digital setting with light touching the panel. Permanent preservation of parameters setting even without power
• Protection method: alarm if input circuit burn- out, input signal over/less than measuring range
