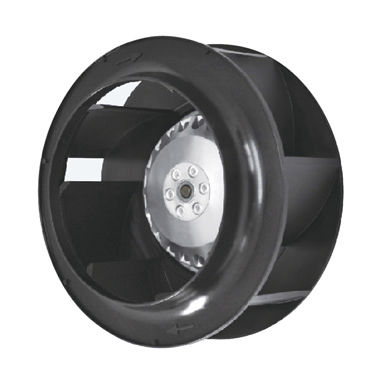

Electrical cabinet fan 133FLW seriescentrifugalcooling220VAC
Add to favorites
Compare this product
Characteristics
- Installation
- for electrical cabinets
- Configuration
- centrifugal
- Function
- cooling
- Supply voltage
- 220VAC, 380VAC
- Air flow
4.5 m³/min, 5.5 m³/min
(158.916 ft³/min, 194.231 ft³/min)- Diameter
93.5 mm
(3.681 in)- Rotational speed
2,540 rpm, 2,670 rpm, 2,800 rpm
(15,959 rad.min-1, 16,776 rad.min-1, 17,593 rad.min-1)- Noise level
58 dB, 60 dB
Description
Motot:Shaded pole/Cage type capacitor structure external totol motor.
Impeller:Black PA nylon one-time injection moulding
Operation range:-40℃~+80℃（temperature）,0%-95% (humidity)
Protection:Impedance protected/Automatic recovery thermal protection.
Withstand Voltage：AC 1800V,1min at 0.5mA,50/60Hz
Insulation Grade:design according to IEC61858 Grade F.
