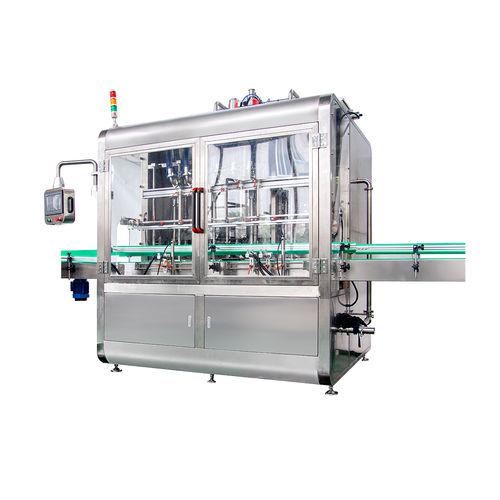

Automatic filling machine NP-PF

bottlebottlejerry can

A servo pump filling machine is a type of liquid filling machine whose filling system is by servo motor driven pump Pumps can be different for different types of liquid, viscous liquid or sauce, the popular pumps adapt for filling are the peristaltic pump and rotor(lobe) pump. peristaltic pump is mostly using for thin liquid, application in phamarceuticals liquid and cosmetics liquid; the lobe pump is application for non corrosive viscous liquid and sauce. -Application：both thin and pasty products, for example: cosmetic creams, heavy sauces, thick shampoos and conditioners, honey, hair gels, cream cleaners and car waxes. -Features: This rotor lobe pump filling machine adopts high-precision stainless steel rotor pump to measure the liquid capacity. Each pump is driven by a servo motor, with a wide filling range and high filling accuracy. The equipment has a simple structure, easy operation and easy maintenance. The filling capacity is adjusted directly on the touch screen. The lifting of the valve is driven by a servo motor, the bottom-up filling system is optional for foamy liquid The whole machine is made of 304 stainless steel. -Technical Parameter: Filling Nozzles - : - 2/4/6/8/10/12/14/16/18/20 Nozzles(according to your needs) Production Capacity - : - 20-200 BPM Filling Volume - : - 100-100ml, 1-5L Power - : - 1.5-6KW, 220VAC Driven - : - Servo Motor Interface - : - Touch Screen
