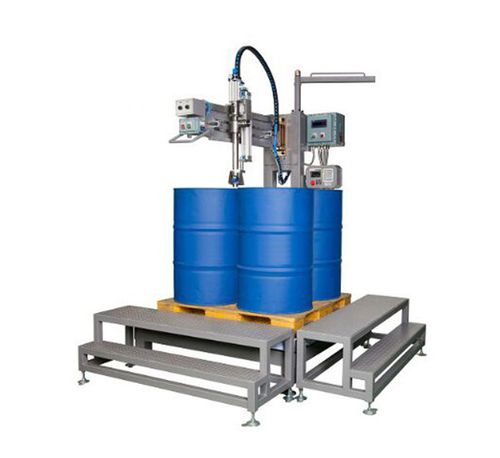

Semi-automatic filling machine

drumIBCfor chemical products

IBC Liquid weighing filling machine The IBC weighing filling machine is a sophisticated piece of equipment that is designed to accurately fill intermediate bulk containers (IBCs) with a variety of different products. These machines feature high-precision weighing systems that ensure accurate measurement every time, and they are capable of liquid-filling IBC Features of the IBC weighing filling machine: 1. High-precision load cells 2. Automatic tare and gross weighing functions 3. Product-specific filling programs 4.Easy-to-use touchscreen interfaces 5. Automatic valve control for precise filling 6. Automatic IBC positioning and clamping 7. A range of safety features, such as emergency stop buttons and safety guarding 8. Overall, the IBC weighing filling machine is an excellent investment for any business that requires accurate and efficient filling processes for intermediate bulk containers. Specifications ·   Max. Capacity ::300kg X 4drums ·   Division::0.2kg/drum ·   Filling Capacity ::100~1200kg ·   Filling Accuracy :: ≤ 0.1%  ·   Filling Speed ::40~60 Drum/hr ·   Up/Down Rang:: 0-50mm(H) ·   Platform::1300X1300mm ·  Barrel Dimension::≤φ600×h950mm ·   Air Pressure: 0.4~0.8Mpa ·   Filling Valve:Material::SUS304/316 ·   Power::AC 110V/220V, 50/60Hz, 10A ·   Operating Temperature::-10°C to 40°C OPTION: Roller Track: 1500X1300mm Optional configuration Conveyor, feed pump, reflux valve, filter, gas-collecting hood, conveyor line, capping machine
