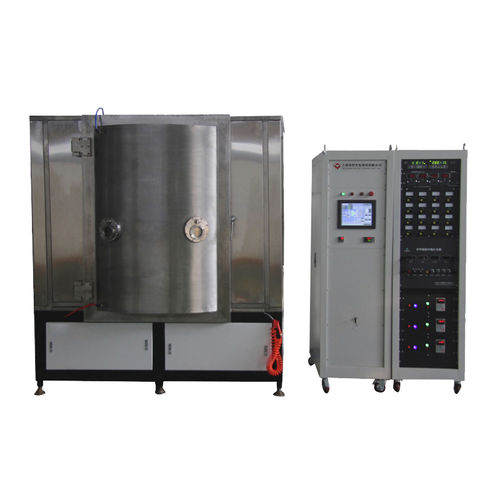

PVD deposition machine RTAC1418

sputteringarc evaporationmetalized film

Ceramic PVD Coating Equipment, TiN Gold Ion Plating System on Ceramic Basins PVD Multi Arc Ion Plating Technology applied with Ceramic products has been developed and used since 1990s; in last decades, the PVD ion plating machines have been used widely in various ceramic products: ceramic tiles, ceramic mosaic wall tiles, ceramic tableware, ceramic kitchen ware, ceramic bathroom finishing like: ceramic basins, ceramic toilets, ceramic holders etc. Ceramic PVD Coating Equipment takes ion plating technology to evaporate solid metals like Titanium, Chrome by cathodic arc source and condense the ionized metals on product surface to generate the Nano thin film. With the reactive gas like: Nitrogen to generate various colors. The ceramic bathroom basin coating equipment features - RTAC series 1. Vacuum chamber is vertical one open door , made from 304 stainless steel, vacuum chamber internal diameter from φ1400mm-Φ2000mm; 2. Vacuum system by Rotary vane pump, Roots pump and Oil Diffusion Pumps or Molecular Pump Constitution; 3. Coating system uses 1-2 intermediate frequency magnetism to control the sputtering power source, has 1-2 pair of non-balanced magnetism to control the target, and has 14-40 arc sources. 4. High efficiency pulse bias power source; 5. The gasification system uses domestically produced or the import gaseous mass flowmeter, the gas flow amount control (demonstration) meter; 6. The electrically controlled system establishment electric circuit overloaded, cuts off the water supply, shuts down the acousto-optics alarm device;
