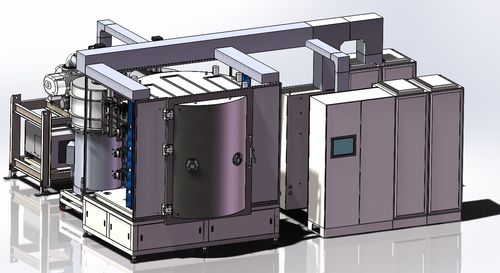

PVD deposition machine RTAC1800A+

arc evaporationthin-filmmetalized film

RTAC1818+ is upgraded model of conventional RTAC1818. The first two machines were designed and fabricated for glass lamps and metal wire lamps PVD decorative coatings. Gradually, this model is used for bigger size items like kitchen stainless steel washing basins, ceramic basins etc. General Information The multi arc vacuum coating system mainly for decorative coatings. Benefits: eco-environment, easy to operate, compact foot print, low cost of owner ship, fast substrate exchange. Coating Colors: gold, black, brown, grey, Chrome colors etc. Gold Colors: TiN, ZrN, TiN+Au, ZrN+Au Rose Gold Colors: TiCN, TiAlN, TiCN+Au-Cu, TiAlN+Au, Cu Chrome colors: CrN, Ti, Cr Gray Colors: stainless steel, stainless steel (N) Brown Colors TiCN, TiAlCN, ZrC Blue Color: TiO, CrO, TiALN Black Colors: TiC, TiC+iC, TiCN, TiAlN, TiAlCN Substrates: stainless sheets and tubes, metal alloys, glass, ceramic materials Coatings Advantages: high shiny and bright colors, strong adhesion & excellent scratch protection, fast deposition rate, good diffraction.
