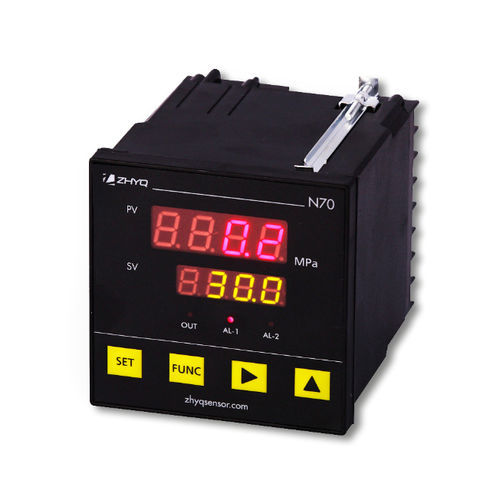

Digital pressure indicator N series
built-inprocess

digital pressure indicator
digital pressure indicator
digital pressure indicator
Add to favorites
Compare this product


Characteristics

Display
digital
Mounting
built-in
Applications
process

Description

Description N70/N80/N90 series intelligent digital pressure instrument is widely used in the occasion of pressure display and automation control for the industry of hydraulic pressure, petroleum, plastic, rubber, printing and dyeing weave and etc. And it also can be matched with the pressure transducer of other manufacturers. With pressure upstream and downstream programmable assignable alarm and light tube alarm indicator, relay contact output control exterior execute setup. This series has high precision voltage output module, current output module and relay output control module for the customers to choose. Specification (1) Display Dual 4-digit Green and Red LEDs (2) Resolution 0.2% FSO ± 1 (3) LEDs Out, Alarm-1, Alarm-2, CALibration (4) Input Sensibility 2.5mv/V , 3.3 mv/V,0-10V or 4-20mA (automatic selection) (5) Sampling Speed 20 per second (6) Excitation Voltage +9 VDC (output to transducer) (7) All Output Relays Relay 220V 1A (8) Retransmission 4~20 mA standard current loop (9) Communication RS-485 MODBUS( PY500 Only) (10) Alarm Range 0001 – 9999 PSI or Bar (configurable) (11) Temperature 0 - 55°C (12) Humidity <= 80% RH (13) Calibration 80% FSO (Full Scale Output) (14) Power Supply 110/220VAC or +24VDC (designated while purchasing) (15) Size N70: 96mm x 96mm x 100 mm (W x H x D) N80: 96mm×48mm×100 mm (W x H x D) N90: 48mm×96mm×100 mm (W x H x D) (16) Panel Cutout N70: 92mm x 92mm N80: 92mm×44mm N90: 44mm×92mm (17) Weight 400(Maximum) grams
