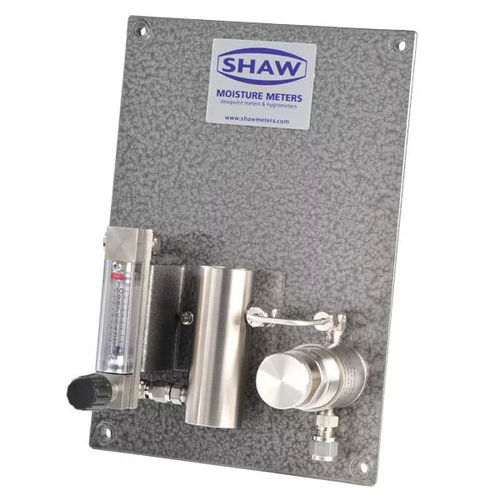

Sample gas conditioning system SU4

Shaw Moisture Meters designed the SU4 sample conditioning unit to reduce the dryer/process line pressure. This provides a pressure and flow suitable for the measurement of trace moisture in process gases and dry compressed air. The SU4 sample system allows the sensor to operate at atmospheric pressure during gas or general compressed air sampling. Combining a pressure regulator, sensor holder and a flow meter for up to 10 litres per minute (1-2 litres is usual for continuous use). Suitable for wall mounting as all elements of the SU4 sample system are fitted to a stove enamelled backplate. The SU4 sample system conditions the flow of sample gas to the required 2-10 litres per minute at near atmospheric pressure for accurate and consistent sampling. Pneumatic connections are available for inlet and outlet, if required. Choose from our selection of ¼”, ⅛” or 6 mm compression fittings. Key features of the SU4 Sample Conditioning Unit • Shaw brand accurate held hygrometer • Designed for gas or general compressed air sampling • Shaw brand accurate held hygrometer • Reduced inlet pressure from up to 210 bar (3045 psi) • Shaw brand accurate held hygrometer • Adjustable sample flow of up to 10 litres per minute • Shaw brand accurate held hygrometer • All stainless steel fittings and pipework • Shaw brand accurate held hygrometer • Inlet and outlet fittings with a choice of ¼”, ⅛” or 6 mm compression fittings • Shaw brand accurate held hygrometer • Overall dimensions: 260 mm (h) x 160 mm (w) x 135 mm (d) • Shaw brand accurate held hygrometer • Approximate weight: 1.6 – 1.8 kg • Shaw brand accurate held hygrometer
