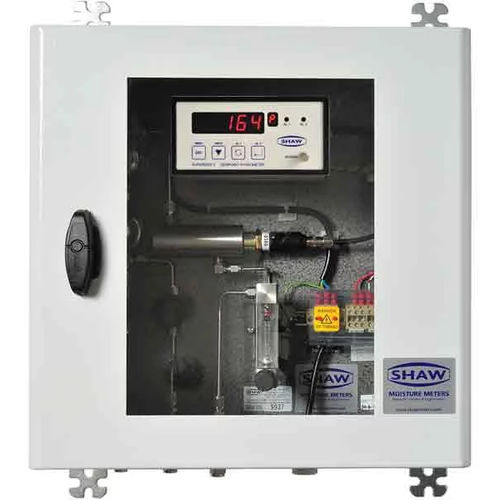

Gas sampler SWS-SD3

airin-linedew-point

The SWS-SD3 weatherproof sample system designed for gas or general compressed air sampling to allow the sensor to operate at ideal sampling conditions. Housed in an IP65 rated weatherproof cabinet, the SWS-SD3 sample system combines pressure regulation, filtration and flow control. The dewpoint meter and dewpoint sensor are housed inside the cabinet protecting them from the elements. Electrical connections are via 1 x STB 16 gland (mains) and 3 x M13 glands (signal lines) to terminal rail. Pneumatic connections to 3 x ¼” NPT bulkhead fittings with a choice of ¼”, ⅛” or 6 mm compression fittings if required. Key features of the SWS-SD3 • Shaw brand accurate held hygrometer • Allows the dewpoint sensor to operate at atmospheric pressure • Shaw brand accurate held hygrometer • 1% accuracy across meter range – for sensor accuracy see Dewpoint Sensor or download the Dewpoint Sensor Specification Sheet • Shaw brand accurate held hygrometer • Dewpoint meter and dewpoint sensor protected from the elements when housed inside the cabinet • Shaw brand accurate held hygrometer • Designed for gas or general compressed air sampling • Shaw brand accurate held hygrometer • Combination of pressure regulation, filtration and flow control • Shaw brand accurate held hygrometer • Sampling options: Input pressure (pr): Up to 200 bar (Med), 400 bar (Hi) • Shaw brand accurate held hygrometer • Overall dimensions: 400 mm (W) x 400 mm (H) x 200 mm (D) • Shaw brand accurate held hygrometer • Weight: 11.3 kg approximately • Shaw brand accurate held hygrometer • Rated IP65 weatherproof • Shaw brand accurate held hygrometer • Wall or pedestal mounting • Shaw brand accurate held hygrometer
