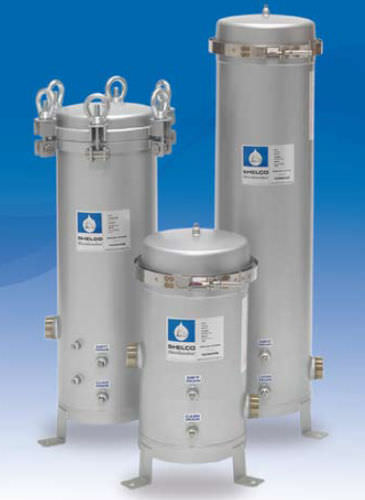

Multi-cartridge filter housing 7FOS series
for liquidsstainless steelsanitary

multi-cartridge filter housing
multi-cartridge filter housing
multi-cartridge filter housing
multi-cartridge filter housing
Add to favorites
Compare this product


Characteristics

Filter type
multi-cartridge
Fluid
for liquids
Material
stainless steel
Other characteristics
sanitary
Operating pressure

Min.: 0 psi

Max.: 150 psi

Description

Multi-Cartridge Filter Housings for Commercial / Light Industrial Applications Stainless steel filters constructed using heavy duty 304L or 316L Stainless Steel construction with Band Clamp or Swing Bolt Closure for maximum durability Holds seven (7) cartridges to service a wide range of flow rates Universal cartridge connectors accept standard double-open-ended (DOE) style cartridges or 222 style cartridges with flat or fin closed ends (226 style adapters optional) Maximum operating pressure: 150 PSI (10 bar) @ 300ºF (149ºC) Inlet and outlet connections: 2″ MNPT (flanged, sanitary (TC), BSP and other options available) Equipped with stainless steel mounting legs Exterior surface finish: Poly-coat over stainless steel (electropolish, other surface finishes are optional)
