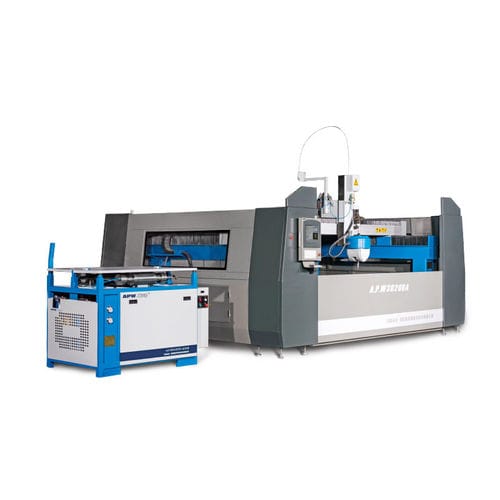

Water-jet cutting machine 3020BA

for ceramicsfor metalfor plastics

3-D cutting technology holds a special place and a significant meaning in fabricating industry. As a cold cutting method, APW 5-Axis Waterjet Cutting Machine has its own irreplaceable feature. fully enclosed 5-Axis waterjet cutting machine In traditional waterjet cutting process, the cutting kerf is wide at the top and narrow at the bottom due to the backlash and energy loss of the jet. APW 5-axis 3-D cutting machine is a perfect solution for this problem. It will guarantee the verticality on the required edge, which greatly improves the cutting accuracy, reduces the cost and prolongs the service life. Combine with the full enclosed structure, Full Enclosed 5-Axis Waterjet Cutting Machine can effectively and largely reduces the noise. It also effectively avoids the water splashed out during processing, which supports a more comfortable working environment. Technical Specifications Structure: Bridge Style Control accuracy: 0.01mm Positioning Accuracy: +/-0.016mm/1000mm X-Axis Max. Moving Speed: 6m/min Y-Axis Max. Moving Speed: 6m/min Z-Axis Max. Moving Speed: 1m/min
