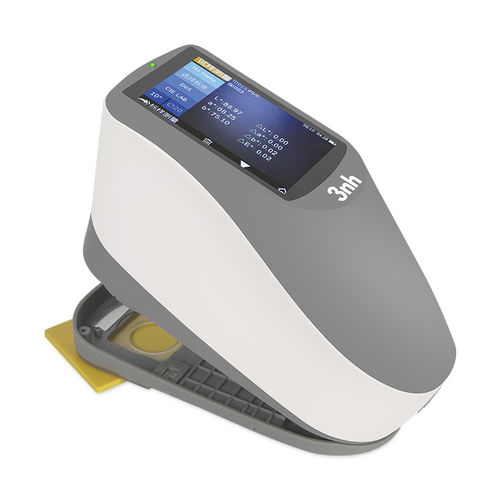

Color spectrophotometer YS4510

USBportablefor color measurement

YS4510 Plus 45/0 spectrophotometer Introduction: YS4510 Plus spectrophotometer with 45/0 geometrical optics structure( 45 ring-shaped illumination ,vertical viewing), comply with C I E N o . 1 5. Adopting concave grating light splitting method. accurately measure the reflectivity and various chromaticity data of samples. users can customize the measurement aperture(Φ 8 / Φ 4 / Φ 2 m m) according to the sample measuring demands, meet the industry accurate color measurement and quality control. PRODUCT FEATURES 1.Perfect combination of beautiful appearance and the human body mechanics structural design; 2.45/0 geometrical optics, conforms with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7，GB 2893、GB/T 18833; 3.Use long life and low power consumption combined LED light source; 4.Optional aperture2mm/4mm/8mm, support both SCI and SCE at the same time; 5. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission; 6.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor; 7.USB port, widely useful; 8.Super stain-resistant and stable standard white calibration plate; 9.Large capacity storage space, over 20,000 measurement data; 10.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;
