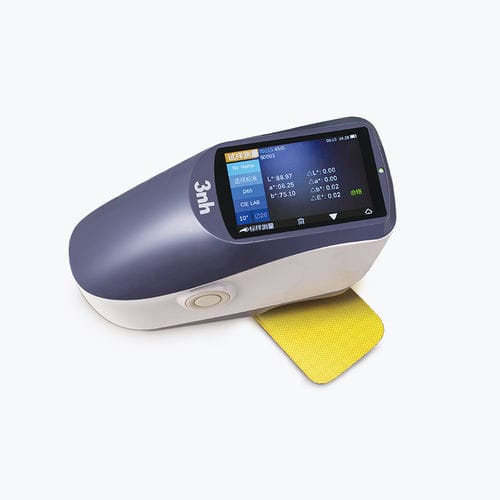

Color spectrophotometer YS4560 45/0

spherereflectancefluorescence

YS4560 45/0 Spectrophotometer Introduction: YS4560 Advanced Spectrophotometer uses 45/0 (45 degree ring illumination, 0 degree reception) geometric optical structure in accordance with CIE No. 15 and adopts concave grating spectrometry to accurately measure sample reflectance and various colorimetric data; The instrument is equipped with Φ8, Φ4mm double measuring aperture, used for traffic signs and accurate color measurement and quality control in various industries. It has a separate UV source for fluorescence sample measurements. PRODUCT FEATURES 1.Beautiful appearance and perfect combination with ergonomic structure design; 2.45/0 geometrical optics, conforms with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7，GB 2893、GB/T 18833; 3.Adopt high-life and low-power combined LED light source, including UV/excluding UV; 4.Optional aperture 4mm/8mm,adapt to more samples to be tested; 5. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission; 6.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor; 7.USB port, widely useful; 8.Super stain-resistant and stable standard white calibration plate; 9.Large capacity storage space, over 30,000 measurement data; 10.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;
