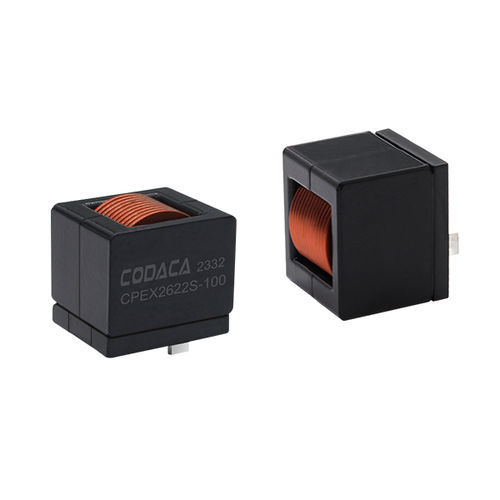

High-current inductor CPEX2622S series

magneticwire-woundpower

■ Excellent DC bias capability to handle instantaneous peak current. ■ Flat wire winding, achieving very low DC resistance. ■ The inductance value and DC bias characteristic are little affected by temperature. ■ Magnetically shielded structure, excellent resistance to electromagnetic interference. ■ Compact design saves PCB mounting area. ■ Operating temperature: -55℃～+155℃ (Including coil’s temperature rise). Notes ■ All data is tested based on 25℃ ambient temperature. ■ Inductance measure condition at 100kHz, 0.1V. ■ Saturation current：the actual value of DC current when the inductance decrease 30% of its initial value. ■ Temperature rise current：the actual value of DC current when the temperature rise is ΔT50℃(Ta=25℃). ■ Special remind：Circuit design, component placement, PCB size and thickness, cooling system and etc. ■ All will affect the product temperature. Please verify the product temperature in the final application. Save ■ Product in packing storage condition : temperature 5～40℃, RH≤70%. ■ If taking out for use, the remaining products should be sealed in plastic bags and preserved in accordance with the above conditions, to avoid oxidation of terminals (electrodes), affecting soldering status. ■ A storage of Codaca Electronic products for longer than 12 months is not recommended, Within other effects, the terminals may suffer degradation, resulting in bad solderability. Therefore, all products shall. ■ Be used within the period of 12 months based on the day of shipment. ■ Do not keep products in unsuitable storage conditions, such as areas susceptible to high temperatures, high humidity, dust or corrosion.
