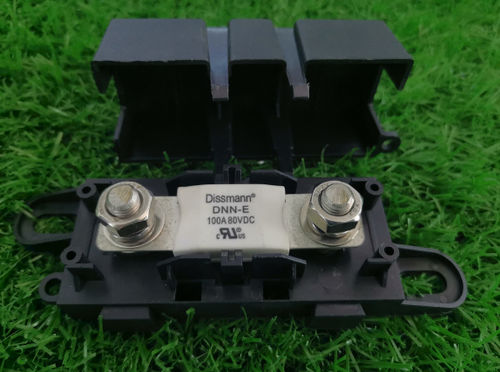

DC fuse DNN-E

fast-actingceramicfor automobiles

This ceramic bolt type fuse is our DNN and DNQ series fuses,their size is different.The DNN suitable line in circuit of 32/58/80VDC,rated current at 10A-500A,breaking capacity up to DC2700A;The DNQ series suitable line in circuit of 32/58/80VDC,rated current of 5A-200A,breaking capacity of DC1500A. Meet the requirement of the ceramic bolt type fuse The DNN and DNQ series fuse for applications in Electric Vehicles (EV) or Hybrid EV are relatively new in the industry and they could be regarded as a crossover product between low voltage fuse and automotive fuse,the dimension and performance conform to UL248-13、ISO8820、JASO-D622、RoHS compliant. Scope of the ANM-B fuse base below DC current and voltage The rated current and voltage of this product is 100VDC 500A. It is used in circuits whose actual working value is lower than or equal to 100VDC 500A. If it is used in a working environment higher than the rated 100VDC 500A value of this product, it will cause serious adverse consequences,The company does not accept responsibility.
