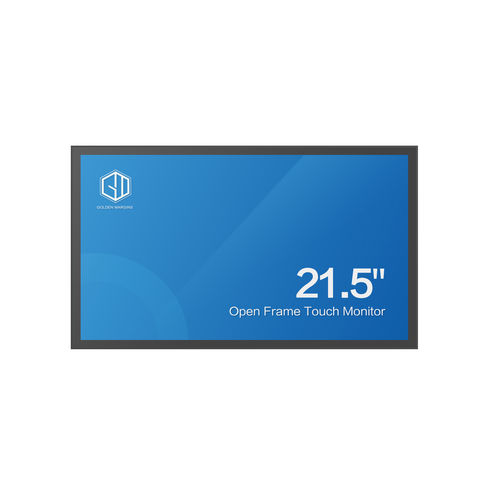

21.5-inch embedded touch display with AG coating that Can effectively prevent glare. Equipped with dual HDMI interface DVI interface and VGA interface, it is very convenient for users to choose. The 2K high-definition monitor screen can display delicate Picture quality. Plus optical bonding between the touch screen with LCD modules together make the picture more realistic reality。
Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, increase the light transmittance, also the display effect is more clear and transparent.
Display Characteristics
Aspect ratio - 16:09
Brightness - 250 cd/m
LED Life Time - 30,000 Hour
Viewable area W x H - 269.1(W)x477.6 (H)
Response Time - 18ms
Viewing zone - horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Support Color - 16.7M colors
Touch accuracy - ±2mm
Touch method - finger, glove (latex), capacitive stylus
Through-Glass - 3mm
Touch scheme - EETI
Interfaces / Connectors / Controls
Features
embeded mode - yes
Max. non-stop operating time - 24/7
Glass thickness - 3mm
Glass hardness - 6H
Ball drop test - yes
Impact testing - IK-7
Water tight seal - yes(front)
General
OSD languages - EN CN
Control buttons - Power on startup
Mechanical
Extra - Anti-glare glass
embeded mode - yes
Max. non-stop operating time - 24/7
Glass thickness - 3mm
Glass hardness - 6H
Ball drop test - yes
Impact testing - IK-7
Housing (bezel) - metal
Water tight seal - yes(front)
Accessories Included
Other - Touch Panel Driver
Cable cover - yes
Power Management
Power supply unit - External
Power supply - DC 12V
Output power - 36W
Rated output current - 3A
Installation Method
VESA - 100mm*100mm Mounted at side
