All-in-one PC GMAAB-H12

boxrack-mountembedded

Product Overview
Embedded PC Box provides switches, indicator lights, and USB 2.0 ports. Lockable, and provides easy-to-identify color on and off-state markings to prevent omissions. Detachable dust-proof net.

Side View
Image: https://www.goldenmargins.com/wp-content/uploads/2023/05/AAB-H12-1.png

Interface
Image: https://www.goldenmargins.com/wp-content/uploads/2023/05/AAB-H12-2.png

Number of PCI, PCI-E slots
Image: https://www.goldenmargins.com/wp-content/uploads/2023/05/AAB-H12-3.png

Product Features

• Alder Lake 12th Gen InteCore i9/i7/i5/i3/Pentium/Celeron LGA1700 processor Intel 7 process, compared to the standard 7nm process description method. Note: the max power consumption supports 125W.
• Support DDR4 2400/2666/2933/3200MHz U-DIMM memory ×2, max 64GB.

Front Panel

• Provide switches, indicator lights, and USB2.0 ports ×2 (one of which is a dongle-specific USB port)
• Lockable, and provides easy-to-identify color on and off-state markings to prevent omissions
• Detachable dust-proof net, convenient for users to maintain

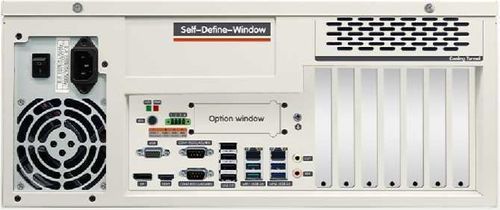

Rear Panel

• Support VGA+HDMI+DP display interface, LAN ×2, Intel i219V, i210, COM RS232/422/485 ×2 (default), 4 xCOM (extensible)
• USB3.2 ×4 (default), USB2.0 ×4, USB2.0 ×2 (extensible), PS/2 (optional), LPT ×1 (optional)
• 4pin locking type custom terminals are reserved on the panel, and the default Remote SW and Power Led
• Support rear panel Self-Define-Window and before delivery preset area OptionWindow. Add interface resources according to user needs.
• PCIE 16X slot, PCIE 1óX slot (4X Signal), 1×PCIE 4X slot (1×Signal), 4× PCI slot

Specification
CPU: Alder Lake 12th Gen Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® LGA1700 processor. Intel 7 process, compared to the standard 7nm process description method. Note: the max power consumption supports 125W
Chipset: Intel® H610
BIOS: 64Mb SPI FLASH
Memory: 2 x DDR4 2400/2666/2933/3200MHZ U-DIMM Memory, max: 64GB
Display: Provide VGA+HDMI+DP display interface and support independent three displays. VGA:1920x1200@60Hz, HDMI2.1:4096×2160@60Hz, DP:4096×2160@60Hz
Storage: Optical drive x1, 2.5-inch hard drive x2, 3.5-inch hard drives x2, M.2 2280SATA/PCIEX1 SSD x1
Network: LAN x1 Intel® i219V Gigabit Ethernet port x1, Intel® i21 OAT Gigabit Ethernet port x1
USB: USB 3.2 x4 (default), USB2.0 x4, USB 2.0 (expandable)
COM: COM x2 (default), support RS232/485/422, COM RS232 x4 (expandable)
Expansion: PCIE 16X (5.0) slot x1, PCIE 16X slot (2.0/3.0X4 signal)x1, PCIE4X slot (2.0/3.0X1 signal) x1, PCI slot x1
Audio: Realtek ALC897 sound card (support Line-out, Mic-in)
GPIO: 4-way input and 4-way output (optional before leaving the factory)
Others: PS/2 optional support TPM2.0 x1 (before leaving the factory), LPT x1 (optional before leaving the factory)
Watchdog: Watchdog function, support 1~255 seconds system restart
Power Interface: Standard ATX power supply, AT/ATX mode (optional)
Operating System: Windows 10/11/Linux Ubuntu/Redhat Enterprise/Fedora Workstation/Open SUSE
Working Temp.: -10°C-60°C
Storage Temp.: -40°C-85°C
Working humidity: Working humidity
Vibration: 5grms/5-500Hz/random/working status (SSD), 1 grms/5-500Hz/random/non-working state (HDD)
Impact: 50g peak acceleration/half-sine (continuous 11ms)/working state (SSD), 20g peak acceleration/half-sine (continuous 11ms)/non-working state (HDD)
EMC/Certification: CE/FCC Class B

Optional CPU List
Model | Number of Cores | Main Frequency | Turbo Frequency | Power Consumption
I9-12900K | 16 cores | 3.9G | 5.2G | 125W
I9-12900KF | 16 cores | 3.9G | 5.2G | 125W
I9-12900KS | 16 cores | 4.0G | 5.5G | 150W
I9-12900F | 16 cores | 3.8G | 5.1G | 65W
I9-12900 | 16 cores | 3.8G | 5.0G | 65W
I7-12700K | 12 cores | 3.8G | 5.0G | 125W
I7-12700KF | 12 cores | 3.8G | 5.0G | 125W
I7-12700F | 12 cores | 3.6G | 4.9G | 65W
I7-12700 | 12 cores | 3.6G | 4.9G | 65W
I5-12600K | 10 cores | 3.6G | 4.9G | 125W
I5-12600KF | 10 cores | 3.6G | 4.9G | 125W
I5-12600 | 6 cores | 3.3G | 4.8G | 65W
I5-12500 | 6 cores | 3.0G | 4.6G | 65W
I5-12490F | 6 cores | 3.0G | 4.6G | 65W
I5-12400F | 6 cores | 2.5G | 4.0G | 65W
I5-12400 | 6 cores | 2.5G | 4.0G | 65W
I3-12100F | 4 cores | 3.3G | 4.3G | 58W
I3-12100 | 4 cores | 3.3G | 4.3G | 60W

Extensible Panel
Options window is an extensible panel, can choose:

• COM x4, COM3/4/5/6, support RS232
• USB2.0 x2
• COM x4, COM3/4/5/6, support RS232, USB2.0 x2

Front Panel Introduce

• The front door has a built-in removable dust-proof cotton to isolate external dust and is easy for users to disassemble and clean.
• The front door can be locked to prevent random opening. Built-in side plug watchdog USB2.0 socket, power switch, and one USB2.0 interface.
• The conductive foam makes the IO interface shell fully in contact with the conductive front panel, and quickly releases the harmful impact of high-voltage contact and static electricity systematically to ensure safe and reliable operation of the equipment.

Definition of Terminal
Image: https://www.goldenmargins.com/wp-content/uploads/2023/05/definition-of-terminal.png
Power light+, Power light-, Switch+, Switch-

Pure Copper CPU Fan

• The thermal conductivity of copper is twice that of aluminum. Our company uses pure copper fans. Compared with the aluminum fans commonly used in the industry, it greatly enhances the heat dissipation effect and reduces the temperature of the CPU and CPU peripheral devices, thereby prolonging the service life of the equipment.
• Industrial applications usually require machines to run uninterruptedly for a long time, which leads to the short life of the fan, which has become a pain point in the industry. Our company adopts high-quality double-ball fan bearings, which greatly improves the life of the fan compared with the double-ball bearings commonly used in the industry, especially the oil-impregnated bearings.

Characteristics / Technical Specifications

• Processor: Alder Lake 12th Gen Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® LGA1700
• Chipset: Intel® H610
• Memory: 2 x DDR4 2400/2666/2933/3200MHZ U-DIMM, max 64GB
• Display: VGA+HDMI+DP, up to 4K
• Storage: Optical drive x1, 2.5" HDD x2, 3.5" HDD x2, M.2 2280 SATA/PCIEX1 SSD x1
• Network: 2 x Intel® Gigabit Ethernet ports
• USB: 4 x USB 3.2, 4 x USB 2.0 (expandable)
• COM: 2 x COM (default), 4 x COM (expandable), supports RS232/485/422
• Expansion: PCIE 16X (5.0) x1, PCIE 16X (2.0/3.0X4) x1, PCIE4X (2.0/3.0X1) x1, PCI x1
• Audio: Realtek ALC897
• GPIO: 4-in/4-out (optional)
• Watchdog: 1~255 seconds system restart
• Power: Standard ATX, AT/ATX mode (optional)
• Operating System: Windows 10/11, Linux Ubuntu/Redhat/Fedora/Open SUSE
• Operating Temp: -10°C to 60°C
• Storage Temp: -40°C to 85°C
• Vibration: 5grms/5-500Hz (SSD), 1grms/5-500Hz (HDD)
• Impact: 50g/11ms (SSD), 20g/11ms (HDD)
• Certification: CE/FCC Class B
