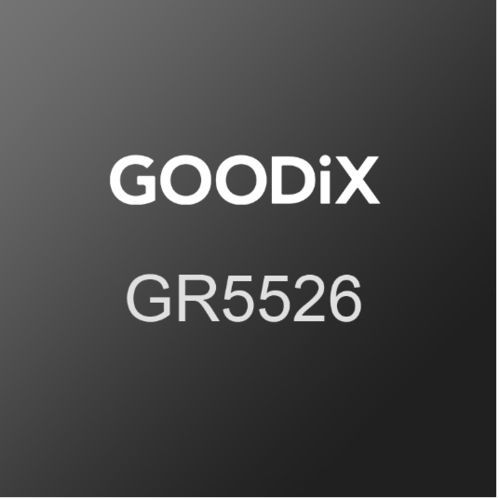

SoC system-on-chip GR5526 series

The Goodix GR5526 series is a high-performance single-mode Bluetooth LE 5.3 SoC. It can be configured as a Broadcaster, an Observer, a Central, a Peripheral, and supports the combination of all the above roles, making it an ideal choice for Internet of Things (IoT), LE Audio, and smart wearable devices. In addition, it supports Bluetooth Low Energy (Bluetooth LE) Direction Finding: angle of arrival (AoA) and angle of departure (AoD), as well as LE Isochronous Channels. Based on ARM® Cortex®-M4F CPU core, the GR5526 series integrates Bluetooth 5.3 Protocol Stack, a 2.4 GHz RF transceiver, on-chip programmable Flash memory, RAM, and multiple peripherals. GR5526 delivers a feature-rich display and graphics solution by providing the option of graphics acceleration (GPU + DC) and system-in-package (SiP) pseudostatic RAM (PSRAM) to accommodate display while still leaving plenty of resource for wearable schemes. Key Features Bluetooth Low Energy 5.3 transceiver integrating Controller and Host layers Supported data rates: 1 Mbps, 2 Mbps, and Long Range (500 kbps, 125 kbps) TX power: -20 dBm to +7 dBm -98 dBm sensitivity (in 1 Mbps mode) -94 dBm sensitivity (in 2 Mbps mode) -101 dBm sensitivity (in Long Range 500 kbps mode) -104 dBm sensitivity (in Long Range 125 kbps mode) TX current: 4.0 mA @ 0 dBm, 1 Mbps RX current: 3.5 mA @ 1 Mbps AoA/AoD, LE Isochronous Channels ARM® Cortex®-M4F 32-bit micro-processor with floating point support Up to 96 MHz clock frequency Built-in Memory Protection Unit (MPU) supporting eight programmable regions
