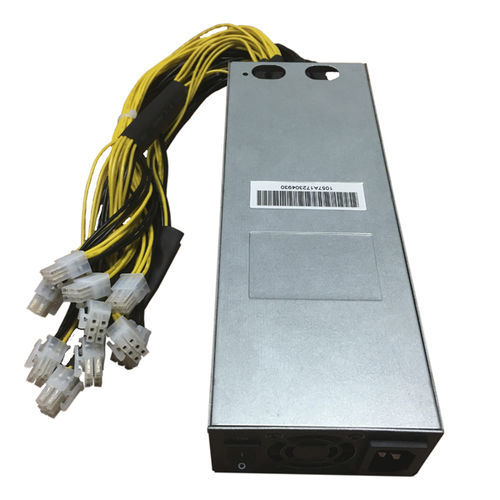

AC/DC power supply G1059

Add to favorites

Compare this product

Go to the SHENZHEN GOSPELL DIGITAL TECHNOLOGY CO., LTD website for more information

Characteristics

Type

AC/DC

Input voltage

Max.: 264 V

Min.: 176 V

Output voltage

12.3 V

Current

Max.: 150 A

Min.: 0 A

Power

Max.: 1,800 W

Min.: 0 W

Description

Rated Input Voltage 200～240 Input Voltage Range 176～264 Max Input Current ≤15A Inrush Current ≤80A Rated Output Voltage 12.25V Load Regulation ≤±2% Line Regulation ≤±1% Rated Output Power 1800W max Rated Output Current 0-150A Output Ripple & Noise ≤120 mVp-p Turn-On/Off Overshoot ≤±5% Rise Time ≤100mS Turn-On Delay Time ≤3S Hold-Up Time ≧10mS Efficiency ≥93% Protection OLP, OTP, Output OVP Short-Circuit Protection etc. Dimension 255*91*46 mm Weight 1800g Operating Temperature -40℃～＋50℃ Full-load Storage Temperature ﹣40℃～85℃ Operating Humidity 5%～95% Storage Humidity 0 ～ 95% Altitude ≤5000m Cooling Method Forced air cooling MTBF 50K hrs @25℃
