3.97" display module HG040WV006T02LCD/TFTcapacitive touch screenIPS
Add to favorites
Compare this product
Characteristics
- Type
- LCD/TFT, IPS, capacitive touch screen
- Format
- 480 x 800
- Screen size
- 3.97"
- Applications
- industrial, for medical equipment, for vehicles
- Other characteristics
- MIPI
- Width
57.14 mm
(2.2496 in)- Height
96.85 mm
(3.813 in)
Description

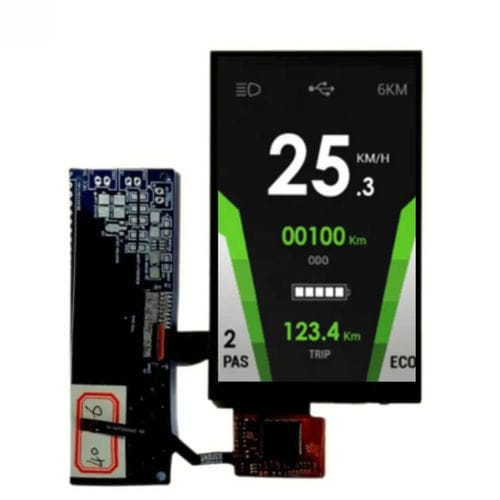

HG040WV006T02 | 3.97 inch TFT LCD | MIPI | IPS | 480x800 | 330 Luminance | Capacitive Touchscreen
This 3.97-inch TFT LCD is a medical touch screen with a MIPI interface and offers a full view.
It is widely used in the medical industry, such as EMI, EMC, and related tests.
Hongguang Display offers a custom solution that includes the option of adding a capacitive or resistive touchscreen.
The material is RoHS-compliant.
Diagonal: 3.97 (inch)
Resolution: 480x800 (pixel)
Display Type: IPS
Display Mode: Transmissive
Optimal View: Full View
Touch Screen: CTP
Module Dimensions: 57.14 x 96.85 x 3.40 (mm) (W x H x D)
Active Area: 51.84 x 86.40 (mm) (W x H)
Luminance: 330 (cd/m2)
Interface: MIPI 24PIN
Operating Temperature: -20~+70 (°C)
Storage Temperature: -30~+80 (°C)
