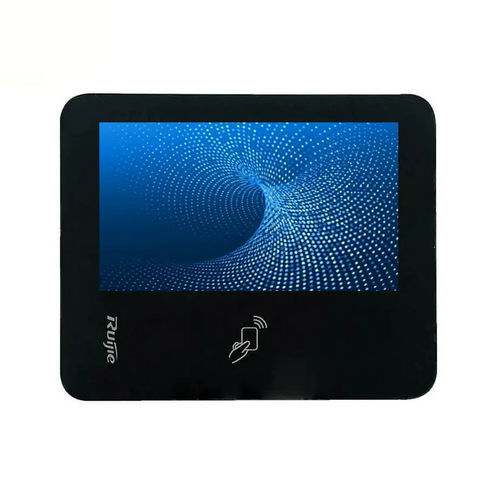

HG043WV005T01 | 4.3 inch TFT LCD | IPS Display | RGB Interface | 800x480 Pixels | Capacitive Touchscreen |
The 4.3 inch TFT LCD is a high-quality display panel that combines an IPS display technology with a capacitive touchscreen, offering an immersive visual experience and intuitive touch control. With its vibrant colors, high resolution of 800x480 pixels, and responsive touch functionality, this display is perfect for a wide range of applications.
It is widely used in gates, face recognition and other systems, providing user-friendly interface and visual display functions.
Hongguang Display offers the option of a custom solution with either a capacitive or resistive touchscreen.
The material is RoHS-compliant.
Diagonal: 4.3 (inch)
Resolution: 800x480 (pixel)
Display Type: IPS
Display Mode: Normally Black
Optimal View: ALL
Touch Screen: Custom
Module Dimensions: 105.50 x 67.20 x 2.90 (mm) (W x H x D)
Active Area: 95.04 x 53.86 (mm) (W x H)
Luminance: 450 (cd/m2)
Interface: RGB
Operating Temperature: -20~+70 (°C)
Storage Temperature: -30~+80 (°C)
