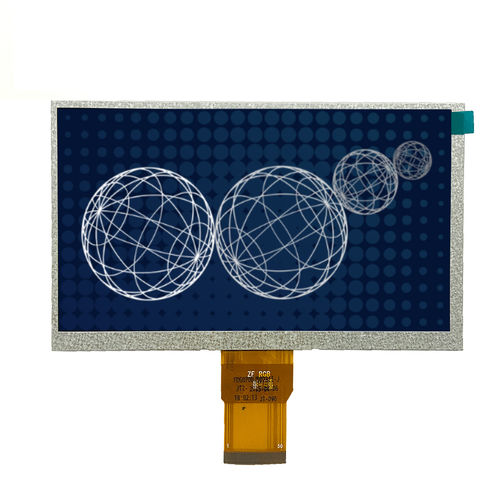

HG070WS055 | 7.0 inch TFT LCD | IPS Display | 1024x600 Pixels | TTL Interface | 550 Luminance |
This 7.0-inch TFT LCD display with an IPS panel. It features a resolution of 1024x600 pixels and utilizes a TTL interface.
The IPS technology ensures wide viewing angles, allowing you to enjoy vivid colors and sharp details from various perspectives.
The display boasts a resolution of 1024x600 pixels, delivering accurate and crisp imagery. Each pixel showcases intricate details and vibrant color saturation, bringing your content to life.
Equipped with a TTL interface, this display offers excellent compatibility with a wide range of devices. Whether it's embedded systems, industrial control equipment, or other electronic products, you can easily connect and utilize this display hassle-free.
Furthermore, our 7.0-inch TFT LCD display features a luminance of 550 nits, ensuring clear visibility in various environments. Whether you're outdoors under bright sunlight or in well-lit conditions, you can enjoy exceptional visibility and readability.
Hongguang Display offers the option of a custom solution with either a capacitive or resistive touchscreen.
The material is RoHS-compliant.
Diagonal: 7.0 (inch)
Resolution: 1024x600 (pixel)
Display Type: IPS
Display Mode: Normally Black
Optimal View: ALL
Touch Screen: Custom
Module Dimensions: 100.00 x 164.90 x 3.50 (mm) (W x H x D)
Active Area: 153.60 x 90.00 (mm) (W x H)
Luminance: 550 (cd/m2)
Interface: TTL
Operating Temperature: -20~+70(°C)
Storage Temperature: -30~+80 (°C)
