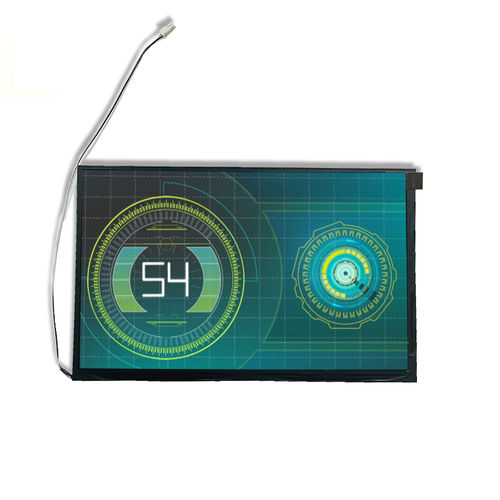

HG101WX021 | 10.1 inch TFT LCD Module | IPS Display | MIPI | 1280x800 Resolution | High Brightness |
This 10.1-inch TFT LCD module features an IPS display with a resolution of 1280x800 pixels and high brightness, making it suitable for various applications.
Its key features include wide viewing angles, crisp image quality, and excellent visibility even in bright environments.
It ideal for applications that require high-quality image display, such as smart home control panels, medical device displays, industrial control interfaces, portable entertainment devices, and educational tools.
Whether it's in home, healthcare, industrial, or educational settings, this TFT LCD module offers reliable performance and exceptional visual experiences.
Hongguang Display offers the option of a custom solution with either a capacitive or resistive touchscreen.
The material is RoHS-compliant.
Diagonal: 10.1 (inch)
Resolution: 1280 x 800 (pixel)
Display Type: IPS
Display Mode: Normally Black
Optimal View: ALL
Touch Screen: Custom
Module Dimensions: 229.46 x 149.10 x 4.80 (mm) (W x H x D)
Active Area: 216.46 x 149.10 (mm) (W x H)
Luminance: 1000 (cd/m2)
Interface: LVDS
Operating Temperature: -20~+60(°C)
Storage Temperature: -30~+70 (°C)
