UHF antenna CL7205K

RFIDdirectionallow-profile

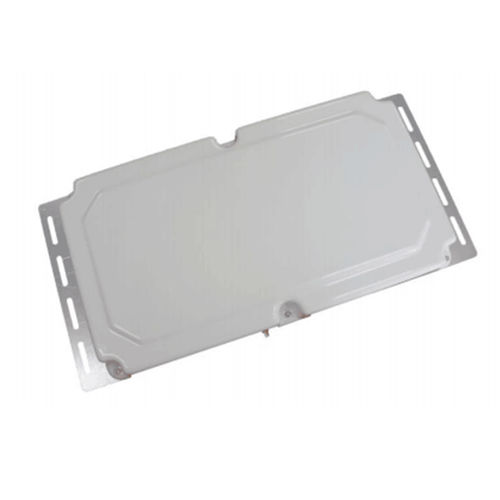

Narrow Beam Antenna for Access Control Gate Reader CL7205K Narrow beam antenna for access control gate reader CL7205K, suitable for UHF band RFID antenna terminal general case, the directional narrow beam, high gain characteristics. And Mechanical Properties:Suitable for all occasions, access control, fleet management and other uses. Features Low profile with high gain，reading distance range up to 20m Maximum efficiency and performance across the entire frequency band Seamlessly compatible with different brand RFID readers Specifications Physical / Environmental Specifications Dimensions (L x W x D) 460 mm×220mm×35 mm Weight 4.3KG Radome Material Aluminum +ABS Sealing IP66 Connector type / position: SMA- male or Customizable Mounting Flush Operating Temperature -40 - +85°C Storage Temperature -40 - +85°C Applications Widely used in parking, warehouse, production line, container yard, access control, etc. Advantages Low profile with high gain，reading distance range up to 15m；Different mounting methods /connector types for match various applications ；Maximum efficiency and performance across the entire frequency band；Seamlessly compatible with different brand RFID readers. Competitive differentiation Narrow wave avoids misreading,10dBi with maximum efficiency and performance across the entire frequency band. Targeted Clients Remind System Integrators RFID Distributors Software Developers Big End Customers
