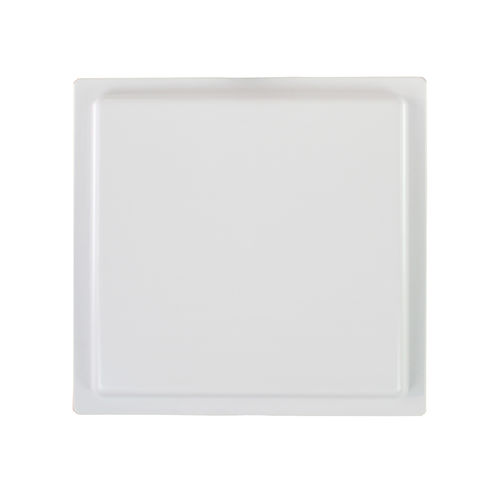

UHF antenna CL7205M

RFIDlow-profilerugged

12dBi Long Range RFID Antenna CL7205M Original appearance designed high-end UHF RFID Antenna, high gain but low standing-wave ratio brings best performance. Engineering plastic housing, rugged construction, high protection level for wide using with our CL7206C2/B2 fixed reader, such as assets tracking, warehouse management, intelligent traffic management, vehicle tracking, production line management, intelligent weight measurement etc. Features Low profile with high gain，reading distance range up to 20m Maximum efficiency and performance across the entire frequency band Seamlessly compatible with different brand RFID readers Specifications Physical / Environmental Specifications Dimensions (L x W x D) 445mm×445mm×40mm Weight 1.95Kgs Radome Material Aluminum +ABS Sealing IP66 Connector type / position: TNC female or Customizable Mounting Bracket Operating Temperature -40- +70℃ Storage Temperature -40- +70℃ Electrical Specifications Frequency Range 860MHz～960MHz Polarization Circular Far-Field Gain 12 dBi H side Beamwidth 45° E side Beamwidth 45° Typical VSWR VSWR≤1.3 Nominal Impedance 50 (Ω) Maximum Input Power 100W Lightning Protection DC to ground
