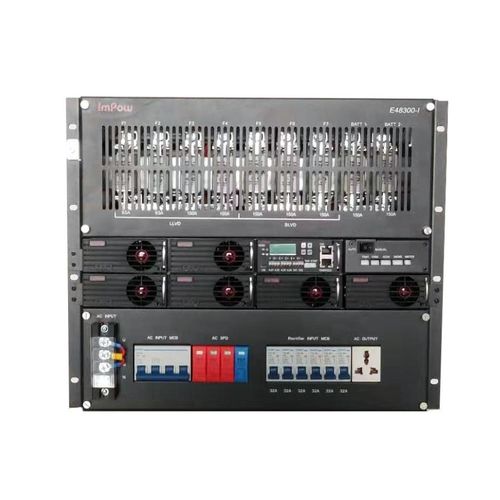

Rack-mount power supply E48300-I series

1UAC/DCfor telecom applications

1U rectifier: high density, high efficiency Wide operation temperature range of embedded power from -40℃ to 80℃ Hot-swappable rectifiers provide easy installation and maintenance Standard installation structure design, adapt to various scenarios Compact design, saving space and installation cost Excellent rectifier dormancy function helps increase system efficiency Intelligent battery management and protection help to prolong battery lifespan Support environmental signal monitoring and remote management through dry contact, serial interface or Ethernet interface 1.Introduction: E48300-I is an AC/DC embedded power system with Excellent performance such as high power efficiency, intelligent battery management,remote management, wide range of AC input voltage, etc. The system can configure 6 pieces of 1U 50A high rectifier modules, and provides 300A rated current output.E48300-I can be embedded in 19-inch rack or cabinet. 2.Features:  1U rectifier: high density, high efficiency( >92%), excellent high temperature performance(full load @ 50℃)  Wide operation temperature range of embedded power from -40℃ to 70℃  Hot-swappable rectifiers provide easy installation and maintenance  Standard installation structure design, adapt to various scenarios  Compact design(only 9U in height), saving space and installation cost  Excellent rectifier dormancy function helps increase system efficiency  Intelligent battery management and protection help to prolong battery lifespan  Support environmental signal monitoring and remote management through dry contact, serial interface or Ethernet interface(options)
