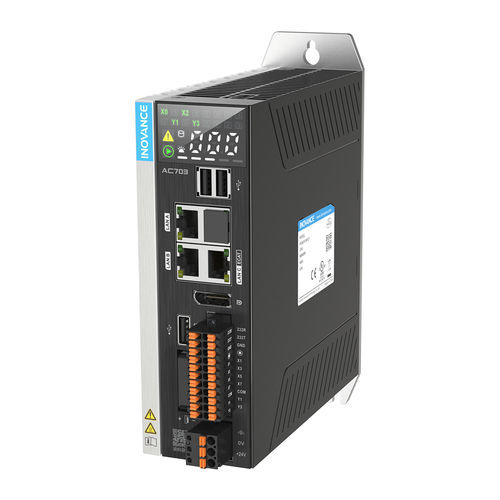

Multi-axis motion controller AC700

synchronousEthernetEtherCAT

The AC700 series, a booksize intelligent controller based on the Intel x86 processor hardware platform, is a high-performance motion controller compliant with the PLCopen and IEC 61131-3 standards. It supports multiple programming languages such as ST, LD, SFC, and CFC. It comes standard with the EtherCAT bus that enables synchronous control of up to 32 axes. The AC700 series is equipped with dual Gigabit Ethernet ports and supports mainstream communication protocols including EtherNet/IP and OPC UA, facilitating data exchange between production sites and IT systems. In addition, the AC700 controller integrates an uninterruptible power supply (UPS) within itself, enabling data retention at power failure without the need for an external UPS. With over seven years of in-depth experience in iterative software platform development and process algorithm libraries in industrial automation, Inovance offers a streamlined, efficient, and stable platform for building equipment applications. This is particularly suitable for large-scale process automation, line automation, and intelligent manufacturing seeking high speed, high accuracy, and high performance. Integrated Design UPS integrated on the controller, enabling data retention at power failure without the need for an external UPS One RS232/RS485 serial port integrated, supporting the Modbus master-slave protocol and free protocols Integrated PLC stop/start interface for control of PLC start/stop through external signals Built-in 200 kHz high-speed I/Os (eight DIs and four DOs) Three Network Ports Independent IP addresses for the two Ethernet ports, enabling isolation between the internal and external networks
