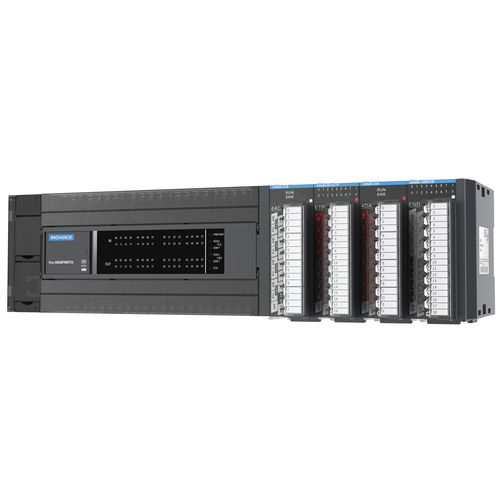

Box PLC H3U series

with integrated I/Oanalog inputsdigital input

The H3U series represents the third generation of high-performance small PLCs from Inovance. It adopts the innovative PLC architecture to continuously improve performance while offering more diversified functions. Stabilization and reliability of the H3U series is ensured with a comprehensive and rigorous software testing process. Overview Benefit High Performance, Large Capacity Easily meets increasingly complex process demands Rich Motion Control Features Ensures precise and flawless equipment motion Flexible Networking Options Supports Ethernet, CANopen, and CANlink for seamless connection of information technology and automation User-Friendly Software Simplifies application processes with the intuitive graphical interface Small-Scale Automation Equipment Primarily used in line automation, woodworking machinery, glass machinery, handling, loading/unloading, and customized electronic manufacturing 64 k-steps program storage and 48 k-words data storage Two serial ports for MODBUS and monitoring; one CAN port for CANlink and CANopen Rich Control Features 5-channel 200 kHz pulse output and abundant positioning control instructions, enabling S-curve acceleration/deceleration, cam synchronous control, and 2-axis linear and circular interpolation One 100 Mbps Ethernet port for MODBUS TCP/IP and free protocols Phase Pulse Counting, Interrupt, and Pulse Capture 8-channel 200 kHz high-speed input, facilitating single-phase and A/B phase pulse counting, with support for interrupt and pulse capture Programmable with USB and Ethernet interfaces
