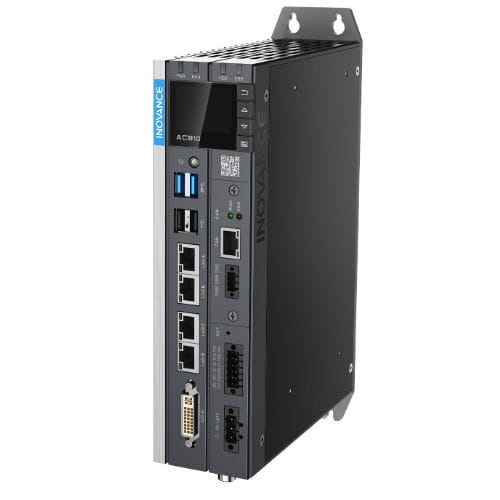

EDGE PC AC810-0122-U0R0-INT

desktopIntel® Core i5x86

The AC800 intelligent controller, developed based on the Intel x86 processor hardware platform, is designed to implement multi-axis motion control with high performance. In compliance with the PLCopen specifications and using the EtherCAT bus, it is especially suitable for control of high-speed production equipment and large equipment in advanced manufacturing. Multi-Axis Synchronous Motion Control; Edge Computing Carrier; Integrated Industry-Specific Process Library High Performance Computational speeds of 250 μs (8 axes), 500 μs (32 axes), and 4 ms (256 axes) Powerful Functionality Compatible with manipulators, electronic cams, and electronic gears High Accuracy ±40 μs jitter Data Processing Library Big data processing, file processing, and production line data collection and processing Abundant Data Exchange Channels OPC UA, EtherNet/IP and other industrial buses Four Network Ports Two EtherCAT ports, compatible with both fast-response real-time axis control and PTP control, facilitating ring network building Two Ethernet ports with different IP segments, one for networking between devices and the other for connection to the information layer, facilitating isolation for security
