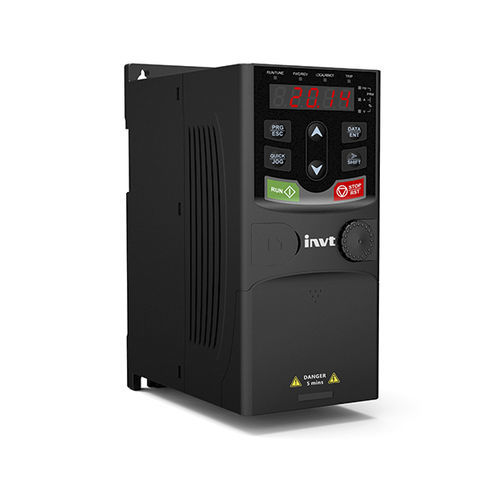

Vector control frequency inverter GD20-UL Series

wall-mountrail-mountedfor UPS

GD20-EU series drive is a mini general purpose vector control inverter, adopting international advanced vector control algorithm . Goodrive20-EU supports wall mounting and rail mounting, which saves installation space. It is a high performance mini product for small power markets.Also, all models meet STO.Some meet both UL and CE certification:1-ph230V:0.4~2.2kW;3-ph400V:0.75~11kW;3-ph230V:0.4~2.2kW; High power meets CE, but not UL:3-ph400V:15~110kW;3-ph230V:4~7.5kW. 1.STO (Safe Torque Off) 2.VF and Sensorless Vector Control 3.Up to 0.5Hz/150% starting torque 4.Built-in braking unit and rich interfaces 5.External keypad to copy parameters 6.Standard C3 filters(≥4kW); Optional C3 filters(≤2.2kW) and C2 Filters 7.Customization services provided (like PTC and Fire-Mode) 8.2 year warranty 9.UL/cUL and TUV SUD certified
