Visible spectrophotometer LS176

colorLEDreflectance

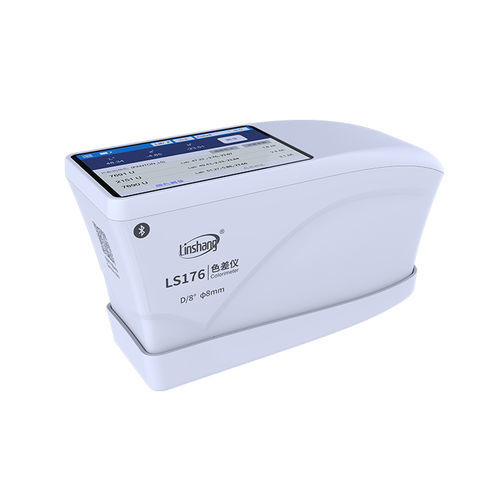

Full spectrum LED light source with balanced spectral distribution in the visible light range Advanced spectral sensor with curve fitting algorithm Offer professional spectral reflectance curve Good repeatability, in line with national standards for Grade 1 colorimeter LS176 is a handheld multifunctional colorimeter with a 3.5 inch IPS color capacitive touch screen for an excellent experience. The instrument integrates many color cards, which can be matched to the nearest color card number for the sample color. It also has a color comparison function, a variety of color difference formulas to choose from, allowing for quick QC testing. The instrument meets the requirements about Grade 1 colorimeter in the Chinese JJG 595-2002 "Verification Regulation of Colorimeters and Color Difference Meters" in all directions. The instrument employs full spectrum LED light source and spectral sensor, adopting D/8 illumination geometry with high measurement accuracy. It is widely used in the industries of automotive paint, hardware processing, stone, decorative materials, and plastic. Illumination geometry - D/8, specular component include (SCI) Illumination light source - Full spectrum LED light source Spectral Interval - 10nm Measuring aperture - 8mm Measurement conditions - Light source D65, field of view 10° Measuring time - About 1s Color space - CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex, WI-98, WI-Gauz, WI-Hunter, YI-98, Reflectance Color difference formula - ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00
